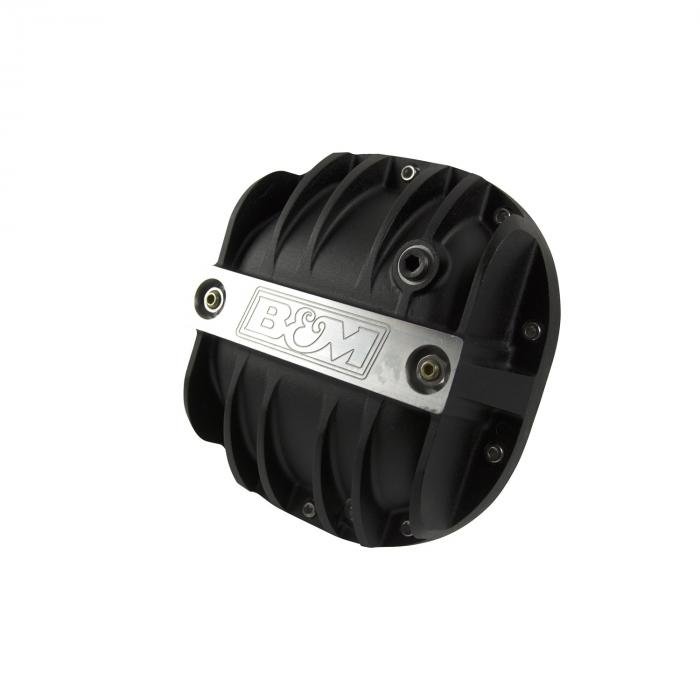

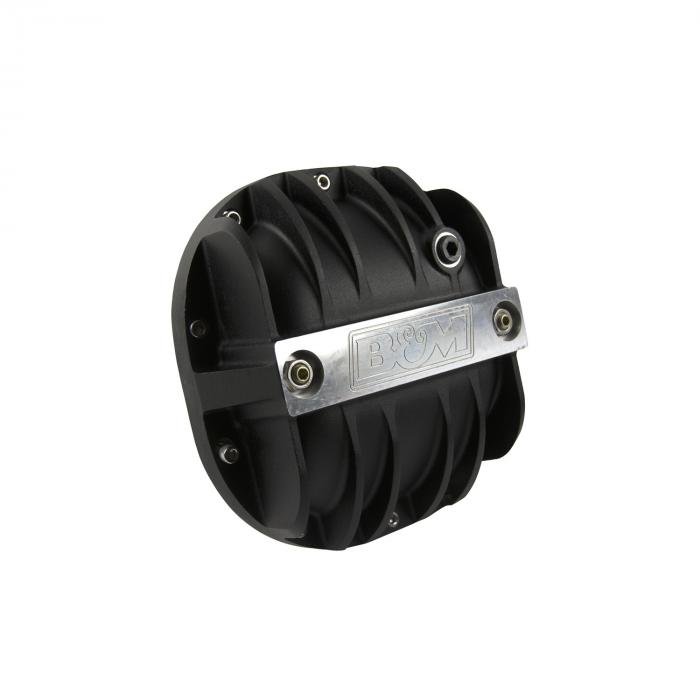

B&M Hi-Tek Aluminum Differential Cover for Ford 8.8-Inch, Black 41297

B&M Hi-Tek Aluminum Differential Cover for Ford 8.8-Inch, Black 41297
B&M Hi-Tek Aluminum Differential Cover for Ford 8.8-Inch, Black 41297B&M Hi-Tek Aluminum Differential Cover for Ford 8.8-Inch, Black 41297B&M Hi-Tek Aluminum Differential Cover for Ford 8.8-Inch, Black 41297
$525.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)19 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024
Model: 3998212
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

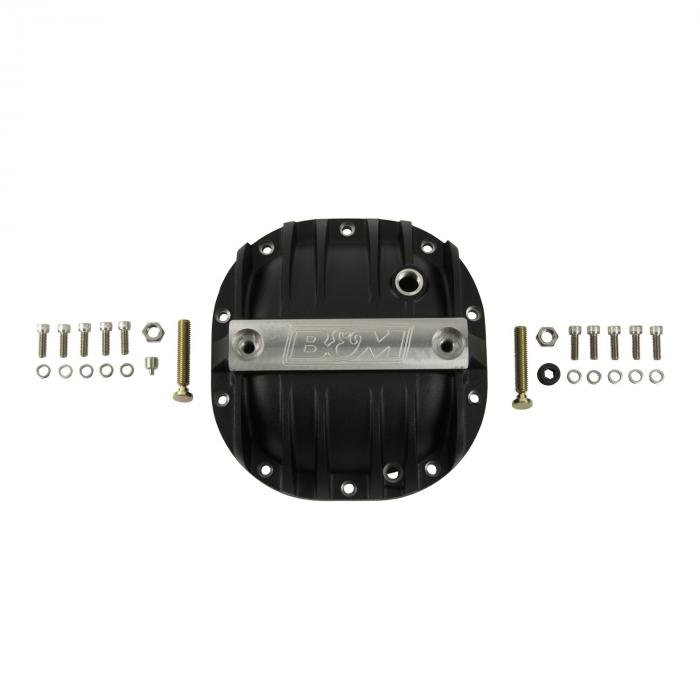

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec black anodized finish, machined B&M logo, and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Does not include gasket.
Features:
  • Load Bolts Provide Additional Support to Bearing Caps
  • Magnetic Drain Plug for Easy Servicing
  • Additional .50-quart Fluid Capacity
  • Black MIL-Spec Anodized Finish
  • Over 65 Years of B&M Quality
  • Lifetime Limited Warranty
  • Machined B&M Logo

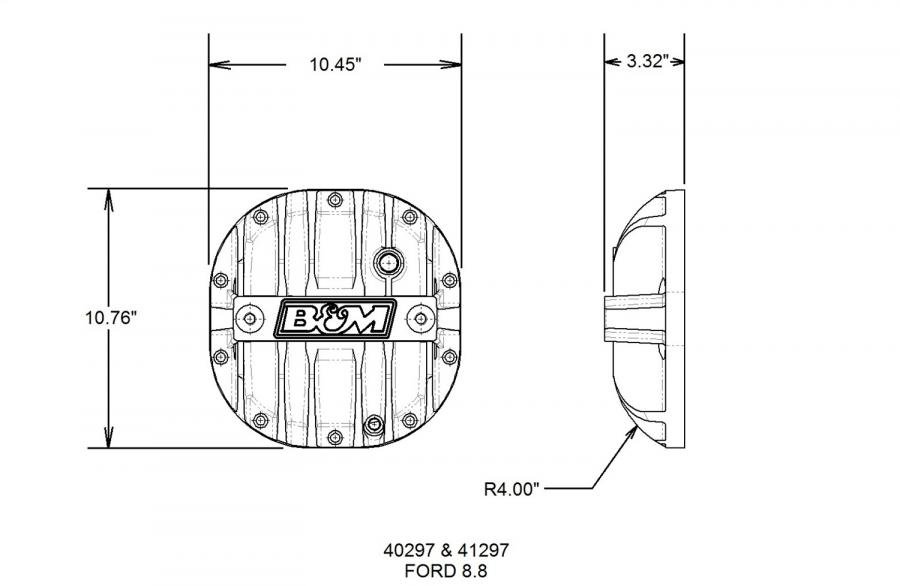

Designed to fit most vehicles with an 8.8-inch differential, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications.
Installation Notes:
Designed to fit most vehicles with an 8.8-inch differential, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications.
About B&M Racing

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.

Downloads:

Download Name File Size
bm_warranty.pdf87.47KB
40297_instructions.pdf1.28MB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine Fitment Notes
Ford Mustang Base 1994 3.8L / 232 / V6 8.8 rear
Ford Mustang Base 1995 3.8L / 232 / V6 8.8 rear
Ford Mustang Base 1996 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 1997 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 1998 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 1999 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 2000 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 2001 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 2002 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 2003 4.6L / 281 / V8
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 2004 3.9L / 238 / V6
3.8L / 232 / V6		 8.8 rear
Ford Mustang Base 2005 4.0L / 245 / V6
Ford Mustang Base 2006 4.0L / 245 / V6
Ford Mustang Base 2007 4.0L / 245 / V6
Ford Mustang Base 2008 4.0L / 245 / V6
Ford Mustang Base 2009 4.0L / 245 / V6
Ford Mustang Base 2010 4.0L / 245 / V6
Ford Mustang Base 2011 3.7L / 227 / V6
Ford Mustang Base 2012 3.7L / 227 / V6
Ford Mustang Base 2013 3.7L / 227 / V6
Ford Mustang Base 2014 3.7L / 227 / V6
Ford Mustang Boss 302 2012 5.0L / 302 / V8
Ford Mustang Boss 302 2013 5.0L / 302 / V8
Ford Mustang Bullitt 2008 4.6L / 281 / V8
Ford Mustang Bullitt 2009 4.6L / 281 / V8
Ford Mustang GT Base 2004 4.6L / 281 / V8 8.8 rear
Ford Mustang GT Bullitt 2001 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 1986 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1987 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1988 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1989 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1990 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1991 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1992 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1993 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1994 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1995 5.0L / 302 / V8 8.8 rear
Ford Mustang GT 1996 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 1997 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 1998 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 1999 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 2000 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 2001 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 2002 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 2003 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 2004 4.6L / 281 / V8 8.8 rear
Ford Mustang GT 2005 4.6L / 281 / V8
Ford Mustang GT 2006 4.6L / 281 / V8
Ford Mustang GT 2007 4.6L / 281 / V8
Ford Mustang GT 2008 4.6L / 281 / V8
Ford Mustang GT 2009 4.6L / 281 / V8
Ford Mustang GT 2010 4.6L / 281 / V8
Ford Mustang GT 2011 5.0L / 302 / V8
Ford Mustang GT 2012 5.0L / 302 / V8
Ford Mustang GT 2013 5.0L / 302 / V8
Ford Mustang GT 2014 5.0L / 302 / V8
Ford Mustang Mach 1 2003 4.6L / 281 / V8 8.8 rear
Ford Mustang Mach 1 2004 4.6L / 281 / V8 8.8 rear
Ford Mustang Shelby GT 2007 4.6L / 281 / V8
Ford Mustang Shelby GT 2008 4.6L / 281 / V8

Specifications:

Bolt Count 10
Bolt Pattern Ford 8.8 in.
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Carrier Main Cap Support Yes
Color/Finish Black Anodized
Drain Plug Included Yes
Emission Code 5, 6
Filler Plug Included Yes
Gasket Included No
Material A356.0-T6 Aluminum
Part Type Differential Cover
Product Type Differential Cover
Proposition 65 www.P65Warnings.ca.gov
Thickness (in) 3.32
Warranty Limited Lifetime (Lifetime)
