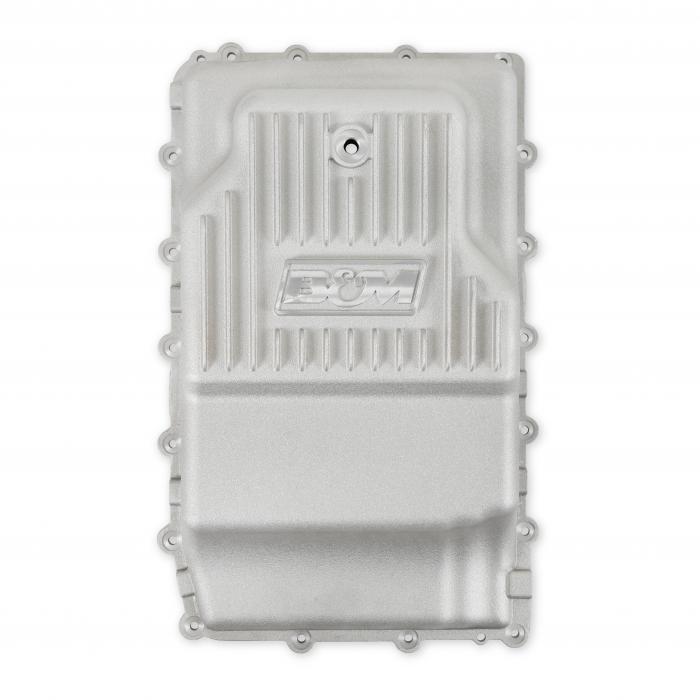

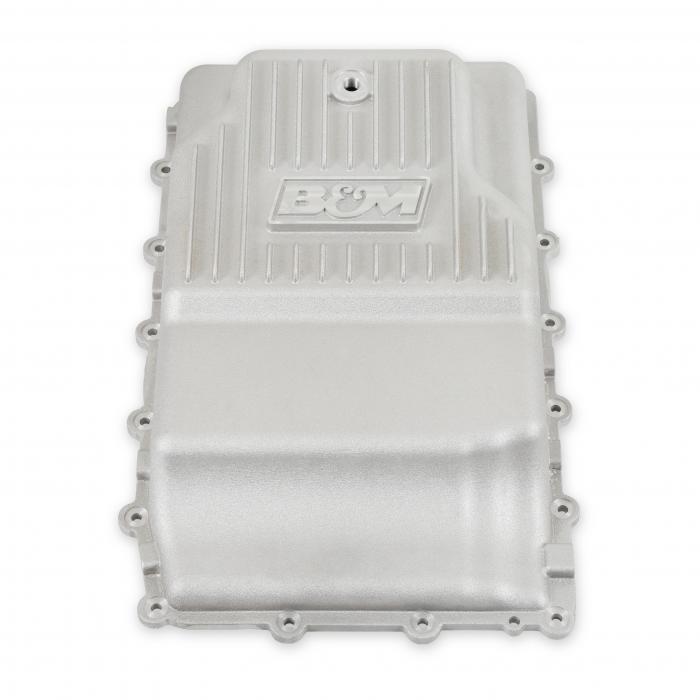

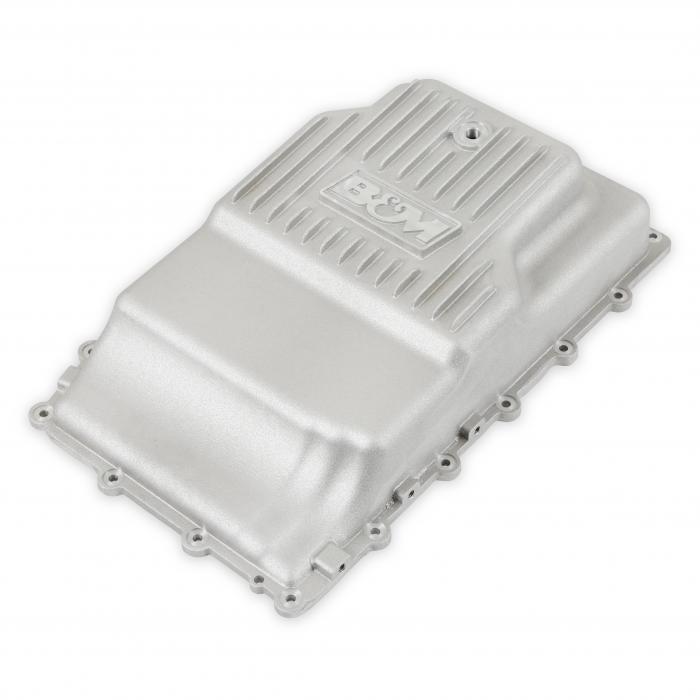

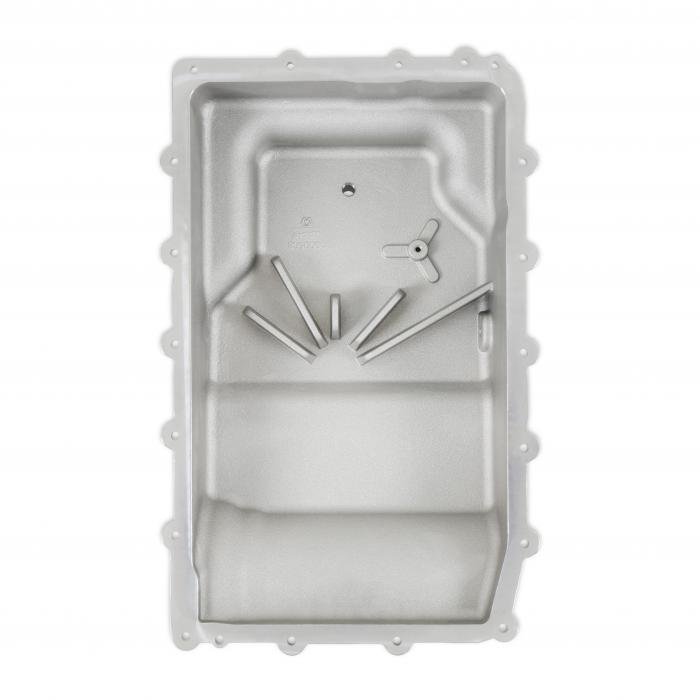

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation. Note: 10R80 transmissions do not come with a dipstick from the factory to check the fluid level. As a solution, B&M offers an optional locking dipstick part #22200 to measure transmission fluid level.
Also available in a black anodized finish (B&M Part #71400).
Features:
- Drain Port with Magnetic Drain Plug for Easy Servicing
- Durable A356 Aluminum Construction
- Features a Temperature Sensor Port
- Includes Filter Extension
- Additional 2-Quart Fluid Capacity
- Lifetime Limited Warranty
- Over 65 Years of B&M Experience and Quality
- Increased Cooling Properties

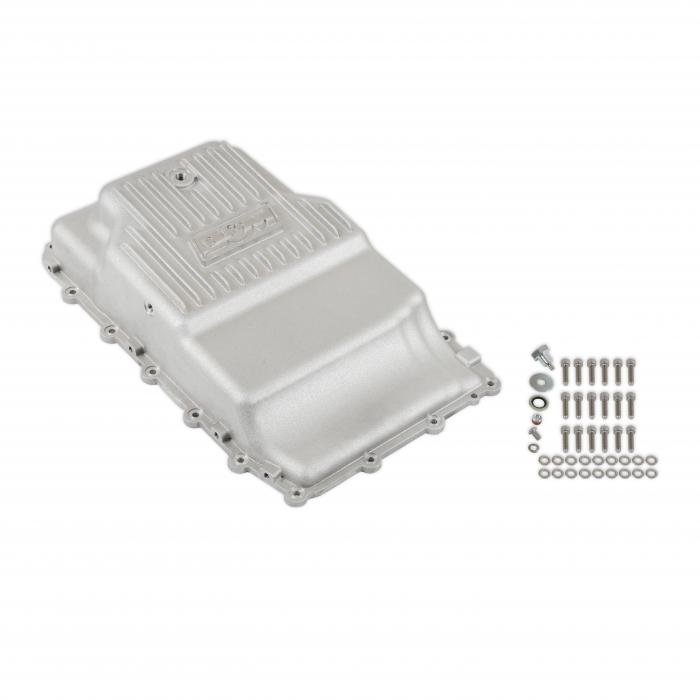

- Hardware Included
- Easy Installation

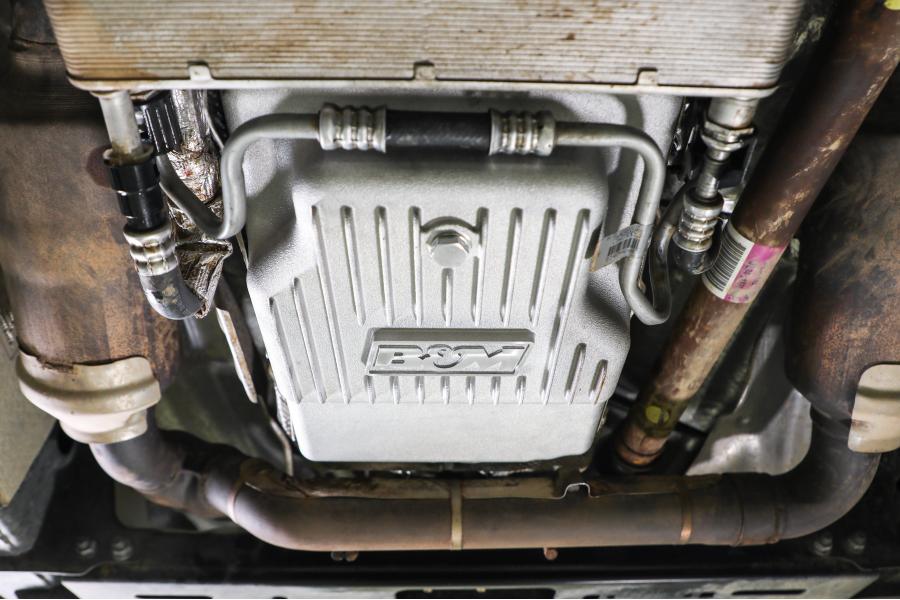

Fits 2017-2023 Ford F-150, Expedition, Explorer, Bronco, Ranger, and Lincoln Navigator, Aviator with 10R80 or 10R60 Transmissions. Increase of 2.0-quarts of fluid capacity. Pan is 4 5/8" deep and while it will physically fit car applications, it will sit about flush with the bellhousing depthwise and could cause issues with road debris and other hazards (speed bumps, etc.), especially on lowered vehicles.
AVOID SERIOUS INJURY OR DEATH BY CRUSHING! If additional clearance is required, securely support the vehicle on a lift or jack stands. WARNING: NEVER work under a vehicle that is supported only by jacks!
AVOID BURNS! Automatic transmissions typically operate at 150-250°F. Allow the transmission to cool down sufficiently before starting work.
Installation Notes:
Fits 2017-2023 Ford F-150, Expedition, Explorer, Bronco, Ranger, and Lincoln Navigator, Aviator with 10R80 or 10R60 Transmissions. Increase of 2.0-quarts of fluid capacity. Pan is 4 5/8" deep and while it will physically fit car applications, it will sit about flush with the bellhousing depthwise and could cause issues with road debris and other hazards (speed bumps, etc.), especially on lowered vehicles.
AVOID SERIOUS INJURY OR DEATH BY CRUSHING! If additional clearance is required, securely support the vehicle on a lift or jack stands. WARNING: NEVER work under a vehicle that is supported only by jacks!
AVOID BURNS! Automatic transmissions typically operate at 150-250°F. Allow the transmission to cool down sufficiently before starting work.
![](/image/data/country_of_origin/made-in-usa-150.png)
About B&M Racing
B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
