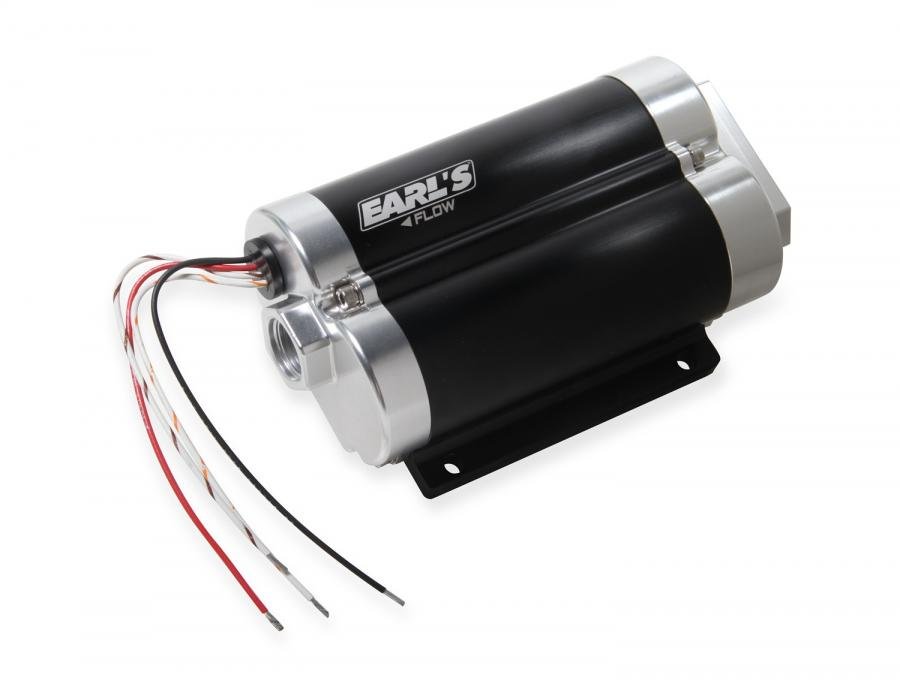

Earl's 200 GPH Dual in-Line Billet Fuel Pump (Dual Inlet) 12018002ERL

Name: Earl's 200 GPH Dual in-Line Billet Fuel Pump (Dual Inlet) 12018002ERL
Brand: Earl's Performance
SKU: 4000199
Price: 945.99 CAD
Availability: InStock

$945.99 ea

NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)9 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024

Model: 4000199

0 reviewsWrite a Review Add to Wish List

CALL US
877.352.5355

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Earl's Dual in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. EARL'S, EARL'S,As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features!

Features:

Billet aluminum construction for durability and good looks
10 AN O-ring inlet/outlet for high flow and superior sealing
Excellent for use with carbureted or EFI applications
Fully submersible in-tank for custom applications, space savings and less plumbing
Compatible with 12v to 18.5v systems for street or race use
Compact (7.66” Long x 5” Wide x 2.5” Tall) for easy installation on frame rails or other tight areas
Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
Patent pending dual pump technology
Proven durability beyond 3,000 hours in race gas or diesel fuels
Weighs only 5.1 lbs.
Current draw at 43 PSI and 13.5 VDC is 17.2 Amps
Not designed for use on aircraft of any type.

*Pump gas compatible for intermittent or under 90 degree ambient temperature use

Pump gas use recommendations:

• This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees

• For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-1200-2 or 12-1600-2 for optimum hot fuel handling

• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.

• To reduce fuel temperatures and vapor lock issues, it is recommended to operate these pumps using one pump for daily driving and low power levels and bring the second pump in with a pressure switch or other device when fuel flow needs increase. This will reduce heating of the fuel load by eliminating excess fuel circulating to the front of the vehicle, thru the fuel rails and back the tank.

Will work with E-85!

These pumps do not have an internal bypass. A bypass style regulator and return line are required.

This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.

Installation Notes:
