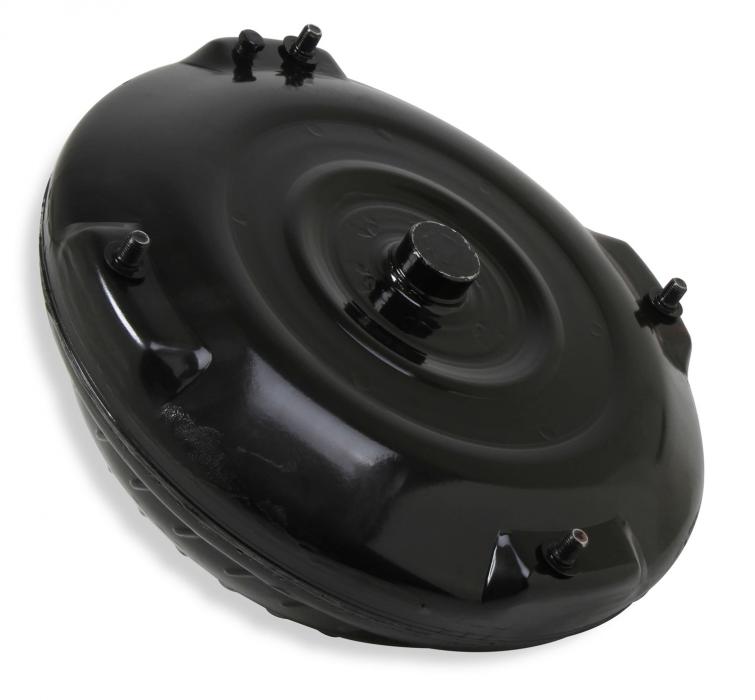

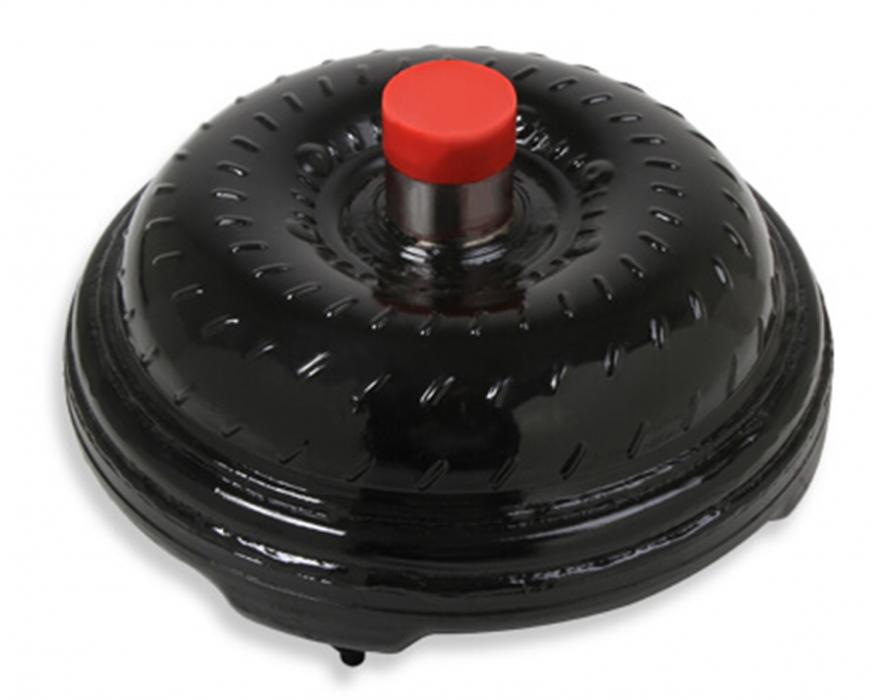

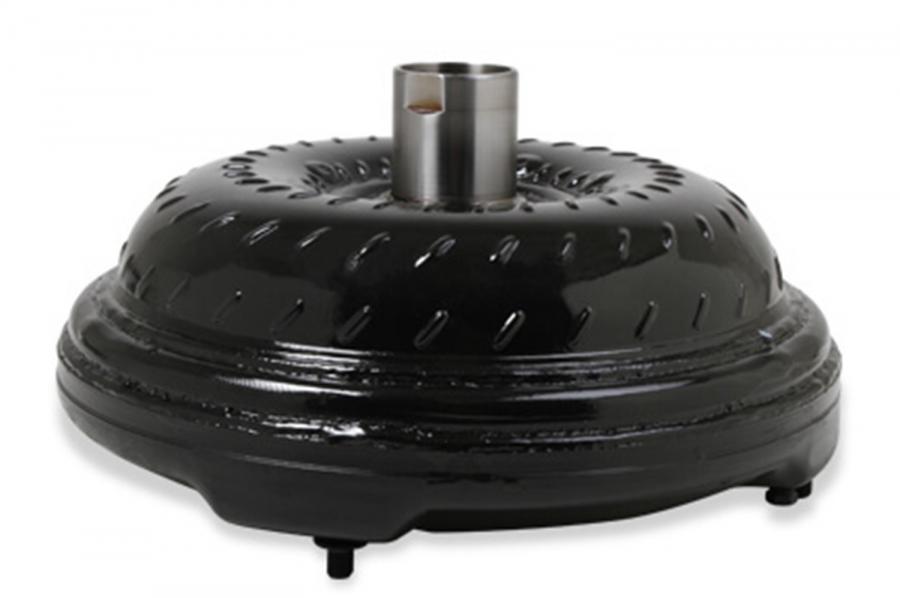

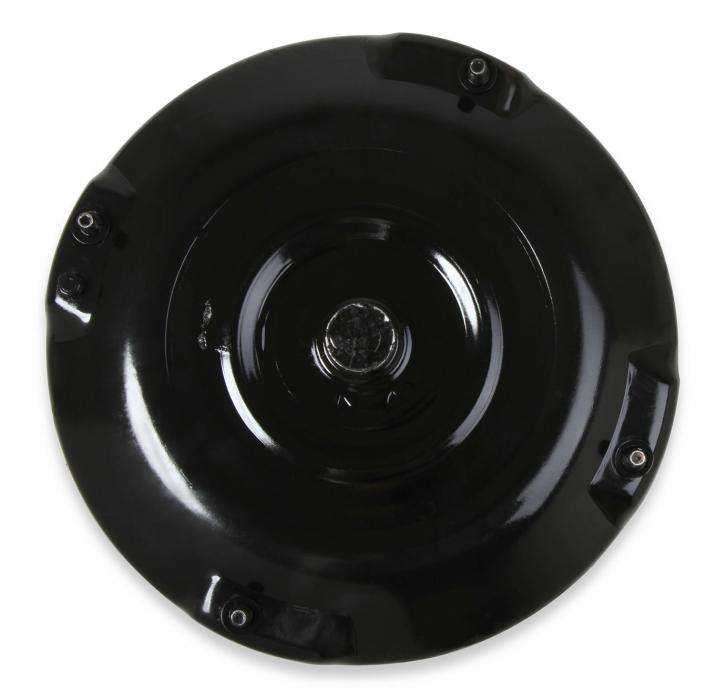

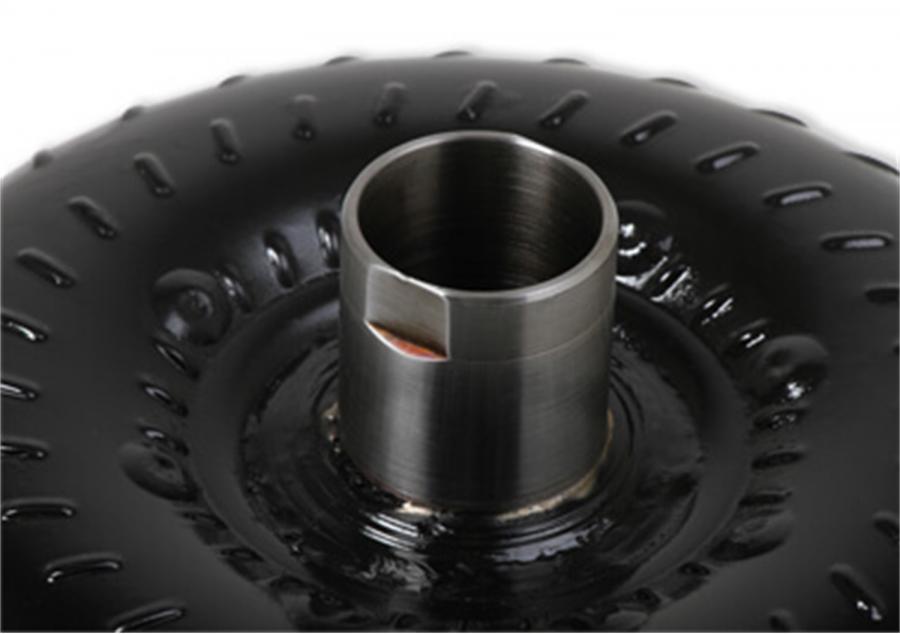

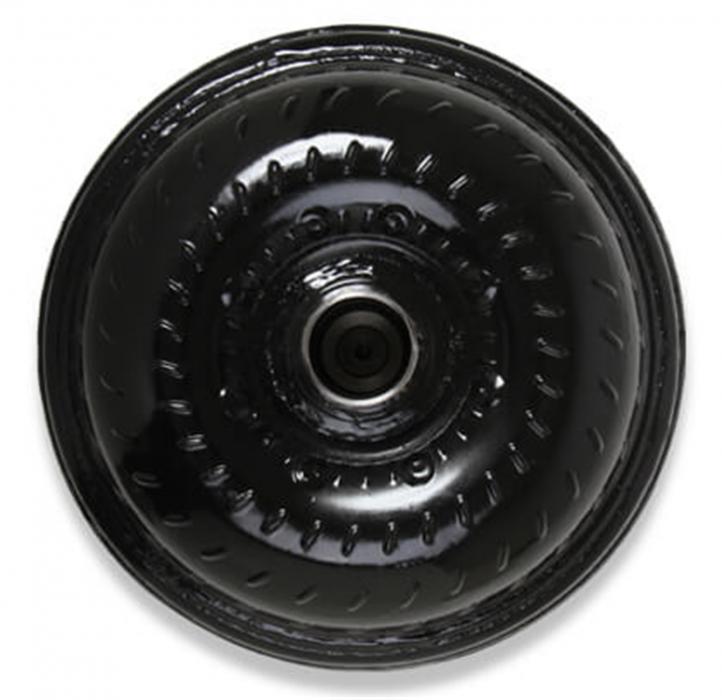

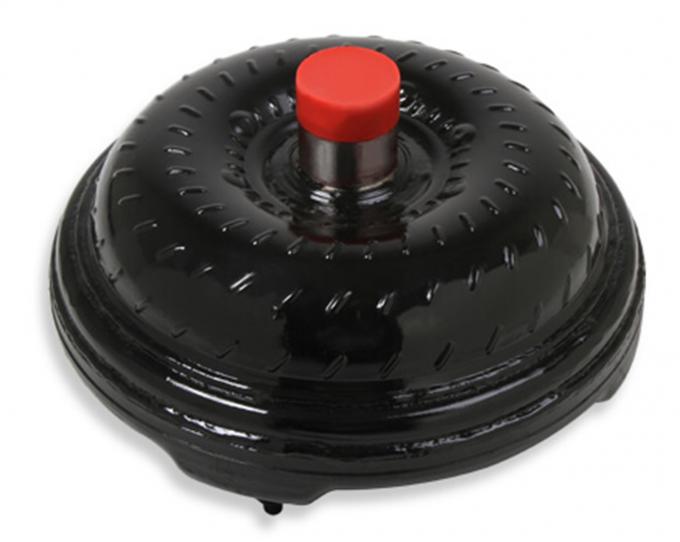

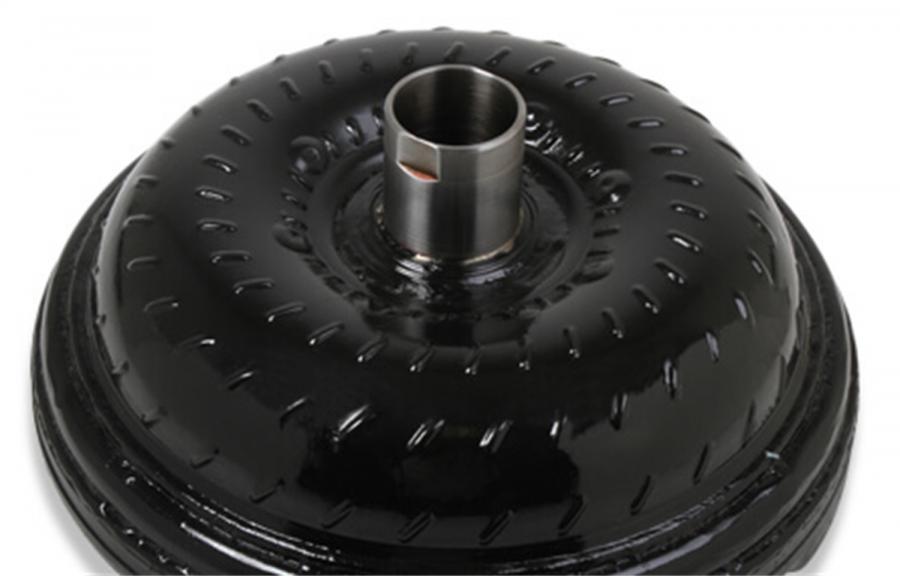

Hays Twister Full Race Torque Converter, Ford AOD 97-2H28F

Hays Twister Full Race Torque Converter, Ford AOD 97-2H28F
Hays Twister Full Race Torque Converter, Ford AOD 97-2H28FHays Twister Full Race Torque Converter, Ford AOD 97-2H28FHays Twister Full Race Torque Converter, Ford AOD 97-2H28FHays Twister Full Race Torque Converter, Ford AOD 97-2H28FHays Twister Full Race Torque Converter, Ford AOD 97-2H28FHays Twister Full Race Torque Converter, Ford AOD 97-2H28F
$1,382.99 ea
NEWOut of stock with our supplier as of 03/16/2024
Model: 4007146
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Hays Twister Full Race Torque Converters feature a custom designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and great for power adders such as nitrous, superchargers, and turbos. They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss.
Features:
  • All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower
  • Features a custom anti-balloon plate designed to stop potential torque converter ballooning
  • Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers
  • State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
  • Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
  • All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
  • Heavy duty Torrington bearings are used for greater strength and durability
  • Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
  • Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
  • Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions
  • Industry leading Tech Support Team is available to provide assistance with stall speed selection
NOTE: The FULL RACE series converters are designed to be used with Trans-brakes and power adders such as Nitrous Oxide, Superchargers, or Turbos.
WARNING: Stall ranges will vary depending on Engine set-up, Weight of vehicle, and Gear Ratio
Installation Notes:
NOTE: The FULL RACE series converters are designed to be used with Trans-brakes and power adders such as Nitrous Oxide, Superchargers, or Turbos.
WARNING: Stall ranges will vary depending on Engine set-up, Weight of vehicle, and Gear Ratio

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Ford Cougar Base 1990 3.8L / 232 / V6
Ford Cougar XR-7 1990 3.8L / 232 / V6
Ford Cougar XR-7 1991 3.8L / 232 / V6
Ford Cougar XR-7 1992 3.8L / 232 / V6
Ford Cougar XR-7 1993 3.8L / 232 / V6
Ford Mustang GT-350 20th Anniversary 1984 5.0L / 302 / V8
2.3L / 140 / L4
Ford Mustang GT 1984 2.3L / 140 / L4
5.0L / 302 / V8
Ford Mustang GT 1985 5.0L / 302 / V8
Ford Mustang GT 1986 5.0L / 302 / V8
Ford Mustang GT 1987 5.0L / 302 / V8
Ford Mustang GT 1988 5.0L / 302 / V8
Ford Mustang GT 1989 5.0L / 302 / V8
Ford Mustang GT 1990 5.0L / 302 / V8
Ford Mustang GT 1991 5.0L / 302 / V8
Ford Mustang GT 1992 5.0L / 302 / V8
Ford Mustang GT 1993 5.0L / 302 / V8
Ford Mustang LX 1988 5.0L / 302 / V8
2.3L / 140 / L4
Ford Mustang LX 1989 5.0L / 302 / V8
2.3L / 140 / L4
Ford Mustang LX 1990 5.0L / 302 / V8
2.3L / 140 / L4
Ford Mustang LX 1991 5.0L / 302 / V8
2.3L / 140 / L4
Ford Mustang LX 1992 5.0L / 302 / V8
2.3L / 140 / L4
Ford Mustang LX 1993 5.0L / 302 / V8
2.3L / 140 / L4
Mercury Capri 5.0 1986 5.0L / 302 / V8
Mercury Capri RS 1984 5.0L / 302 / V8
Mercury Capri RS 1985 5.0L / 302 / V8
Mercury Cougar Base 1981 3.3L / 200 / L6
2.3L / 140 / L4
4.2L / 255 / V8
Mercury Cougar Base 1982 3.3L / 200 / L6
2.3L / 140 / L4
3.8L / 232 / V6
Mercury Cougar Base 1983 5.0L / 302 / V8
3.8L / 232 / V6
Mercury Cougar Base 1984 5.0L / 302 / V8
3.8L / 232 / V6
Mercury Cougar Base 1985 5.0L / 302 / V8
3.8L / 232 / V6
Mercury Cougar Base 1986 5.0L / 302 / V8
3.8L / 232 / V6
Mercury Cougar GS 1982 3.3L / 200 / L6
3.8L / 232 / V6
Mercury Cougar LS 1982 3.8L / 232 / V6
3.3L / 200 / L6
Mercury Cougar LS 1983 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar LS 1984 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar LS 1985 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar LS 1986 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar LS 1987 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar LS 1988 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar LS 1989 3.8L / 232 / V6
Mercury Cougar LS 1990 3.8L / 232 / V6
Mercury Cougar LS 1991 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar LS 1992 3.8L / 232 / V6
5.0L / 302 / V8
Mercury Cougar XR-7 1980 3.3L / 200 / L6
4.2L / 255 / V8
5.0L / 302 / V8
Mercury Cougar XR-7 1981 3.3L / 200 / L6
4.2L / 255 / V8
5.0L / 302 / V8
Mercury Cougar XR-7 1982 3.3L / 200 / L6
4.2L / 255 / V8
3.8L / 232 / V6
Mercury Cougar XR-7 1984 2.3L / 140 / L4
Mercury Cougar XR-7 1985 2.3L / 140 / L4
Mercury Cougar XR-7 1986 2.3L / 140 / L4
Mercury Cougar XR-7 1987 5.0L / 302 / V8
Mercury Cougar XR-7 1988 5.0L / 302 / V8
Mercury Cougar XR-7 1989 3.8L / 232 / V6
Mercury Cougar XR-7 1990 3.8L / 232 / V6
Mercury Cougar XR-7 1991 5.0L / 302 / V8
Mercury Cougar XR-7 1992 5.0L / 302 / V8
Mercury Cougar XR-7 1993 5.0L / 302 / V8
3.8L / 232 / V6

Specifications:

Anti-Balloon Plate Yes
Balanced Yes
Bolt Circle 11-1/2"
Crank Pilot Diameter 1.375"
Diameter 10"
Emission Code 5
Input Spline 35
Lock Up/Overdrive Yes
Part Type Automatic Transmission Torque Converter
Product Type Automatic Transmission Torque Converter
Proposition 65 www.P65Warnings.ca.gov
Series Full Race
Stall 2400-2800
Transmission AOD
Use with Power Adder Yes
Use with Trans-Brake Yes
