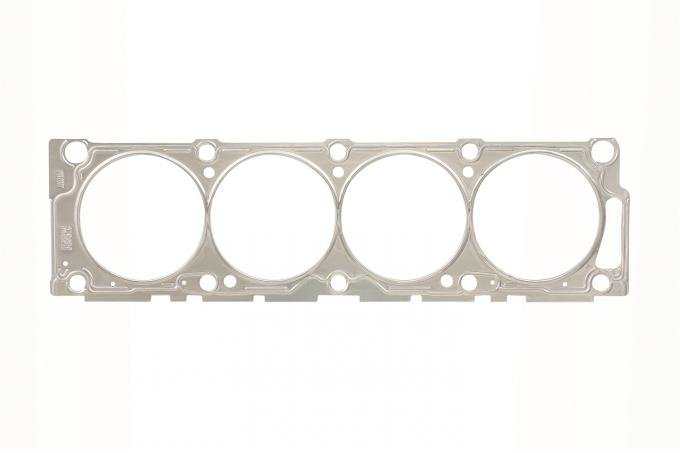

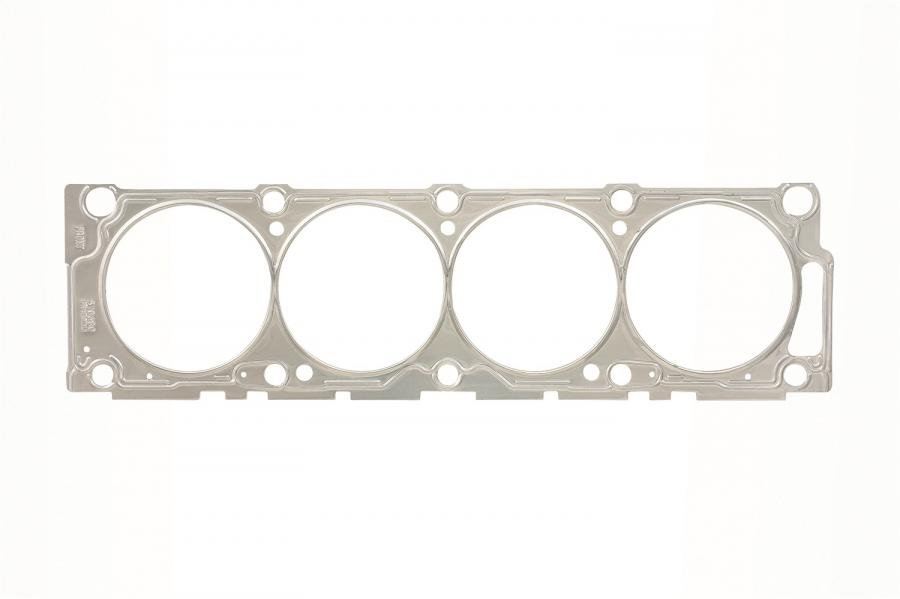

Mr. Gasket Steel Shim Head Gasket 1132G

Mr. Gasket Steel Shim Head Gasket 1132G
$57.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)18 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024
Model: 4010764
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Mr. Gasket Embossed Steel Shim Cylinder Head Gaskets are for high performance street machines, drag racing and oval track racing. This is a very unique design that has a solid metal on metal fold at the combustion seal. This fold makes for a very stout seal that is almost the equivalent of a higher-end MLS (multi-layer steel) gasket with a gas stopper layer, but at a much lower cost. This gasket also has embossments around the coolant and oil passages and has a thick aluminum flake coating. All of these features result in a steel shim head gasket that handles extreme cylinder pressures very well. It's probably the best steel shim head gasket you could ask for. Sold individually.
Features:
  • Embossed steel with aluminum flake coating
  • Solid metal over metal fold at the combustion seal
  • Embossed seals at coolant and oil passages
  • Approximately .020" compressed thickness
  • For high performance street, drag race and oval track use.

Downloads:

Download Name File Size
97140221.pdf145KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Ford Mustang 1967 6.4L / 390 / V8 HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1968 6.4L / 390 / V8
7.0L / 428 / V8
HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1969 6.4L / 390 / V8
7.0L / 429 / V8
HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1970 7.0L / 429 / V8 HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1967 6.4L / 390 / V8 HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1968 6.4L / 390 / V8
7.0L / 428 / V8
HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1969 6.4L / 390 / V8
7.0L / 429 / V8
HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1970 7.0L / 429 / V8 HEAD GASKET; EMBOSSED STEEL SHIM; 4.42 IN. GASKET BORE; 0.030 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;

Specifications:

Application Big Block Ford
Compressed Thickness .020 inch
Compression Ratio Up to 12:1
Emission Code 5
Engine Ford FE Block
Gasket Bore 4.420 inch
Gasket Line Performance
Material Steel Shim
Packaging Retail
Part Type Engine Cylinder Head Gasket
Product Type Head Gasket
Quantity Per Pkg. 1
Warranty Limited 90 Day TX, Limited 90 Day
Weight 0.5000
