Mr. Gasket Ultra-Seal Head Gasket 390-428 Ford Big Block FE 1961-1971 5790G

Mr. Gasket Ultra-Seal Head Gasket 390-428 Ford Big Block FE 1961-1971 5790G
$121.99 ea
NEWOut of stock with our supplier as of 01/04/2024
Model: 4011783
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

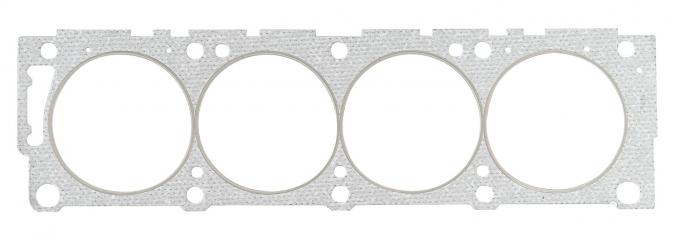

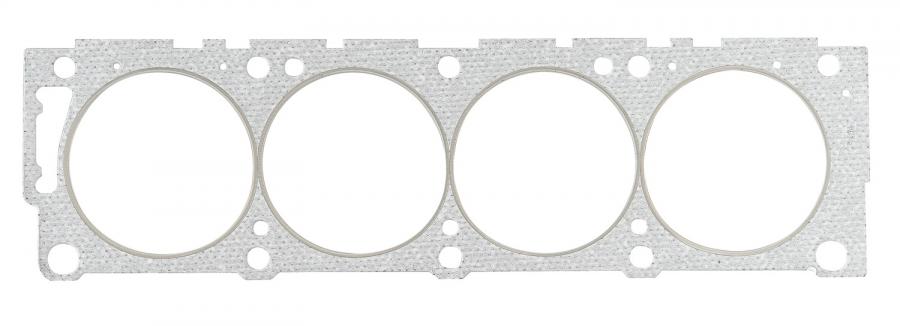

Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing gasket burn-out. They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids. Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use. Sold individually.

Gasket Gasket Bore 4.400:, Compressed thickness 0.038 inch.
Features:
  • Five layer (graphite core/perforated steel outer layers) composite construction
  • Graphite core has excellent thermo-conductivity-transfers heat away from hot spots in head preventing gasket burn-out
  • Provides excellent stability, compressibility and high temperature endurance
  • Coated with high temperature silicone to ensure sealing of engine fluids
  • Will not brinell (indent) aluminum cylinder heads
  • For high performance street, drag race and oval track use

Downloads:

Download Name File Size
97140221.pdf145KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Ford Mustang 1967 6.4L / 390 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1968 7.0L / 428 / V8
6.4L / 390 / V8		 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1969 7.0L / 429 / V8
6.4L / 390 / V8		 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1970 7.0L / 429 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1967 6.4L / 390 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1968 6.4L / 390 / V8
7.0L / 428 / V8		 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1969 7.0L / 429 / V8
6.4L / 390 / V8		 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1970 7.0L / 429 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.400 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;

Specifications:

Application Ford 390-428
Compressed Thickness .038 inch
Compression Ratio Up to 14:1
Emission Code 5
Engine Ford FE Block
Gasket Bore 4.400 inch
Gasket Line Ultra-Seal
Material Graphite Steel
Packaging Retail
Part Type Engine Cylinder Head Gasket
Product Type Head Gasket
Quantity Per Pkg. 1
Warranty Limited 90 Day TX, Limited 90 Day
Weight 0.5000
