MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403

MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403
MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403MSD Crank Trigger Wheel Kit, Flying Magnet, SBF, Windsor 86403
$832.99 ea
NEWARRIVING SOONEstimated Ship Date 10/03/2024 (If Ordered Today)10 Available from HOLLEY PERFORMANCE PRODUCTS as of 09/16/2024
Model: 4017880
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

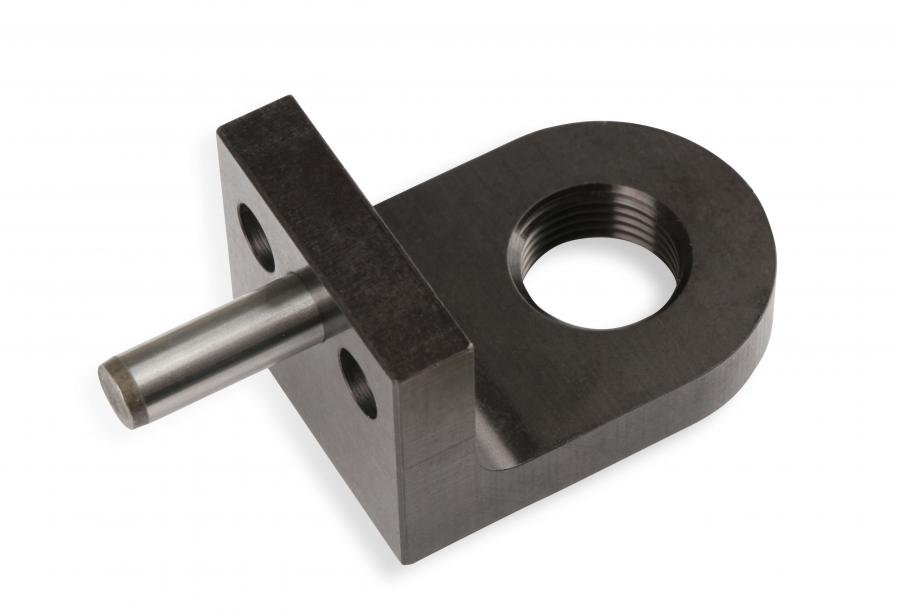

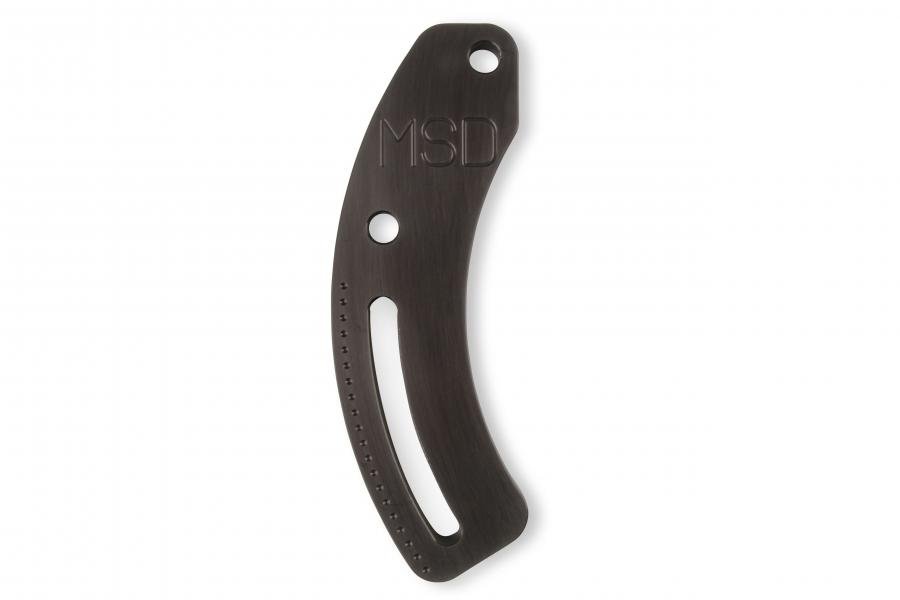

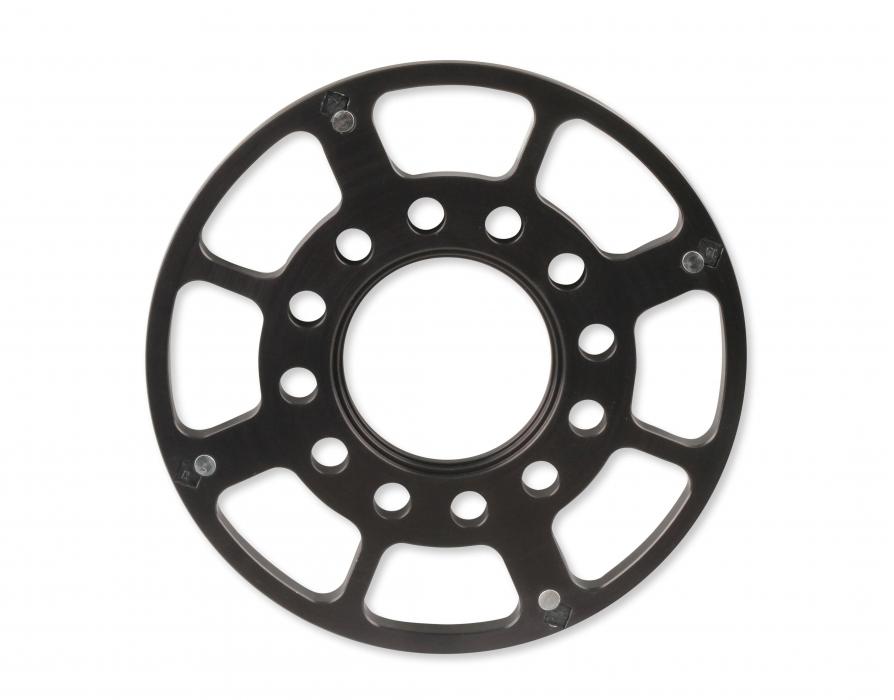

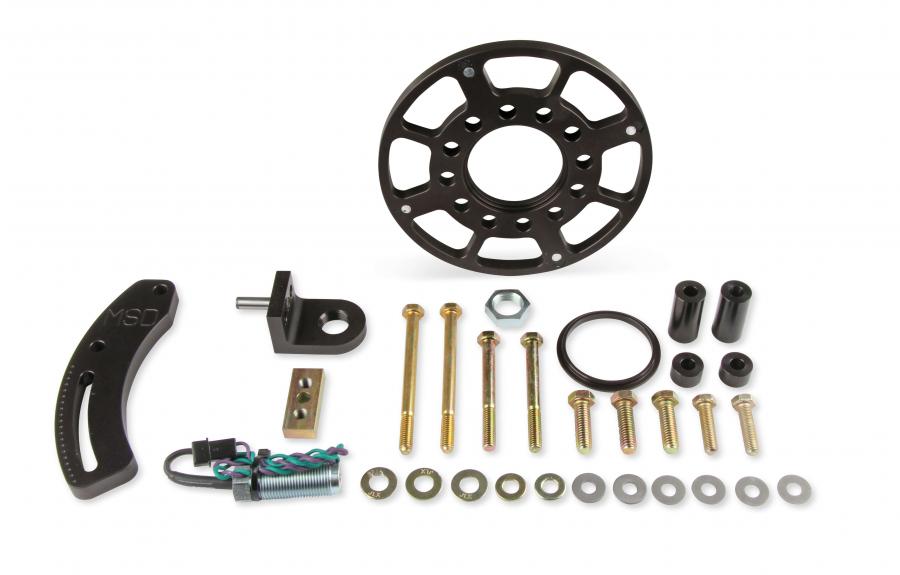

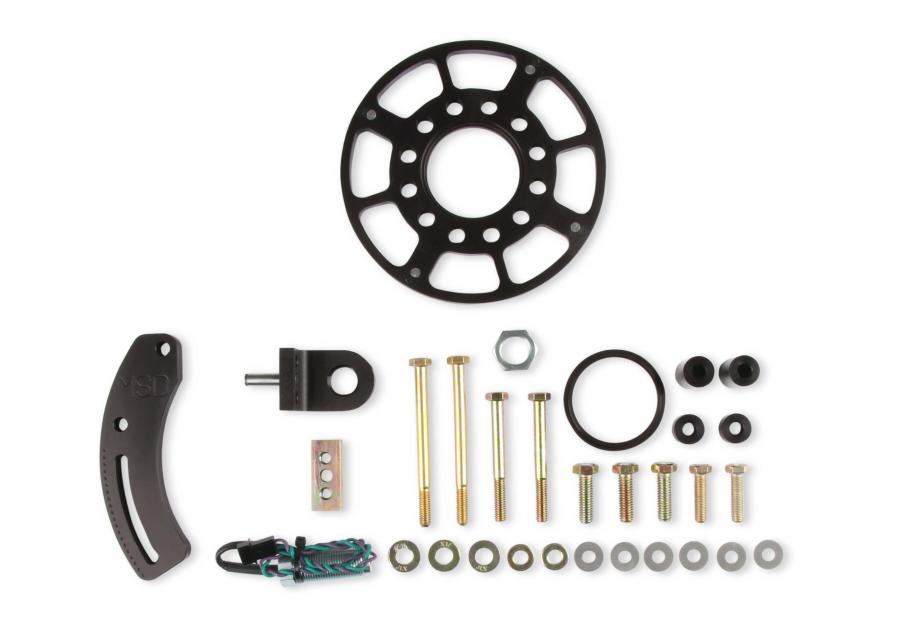

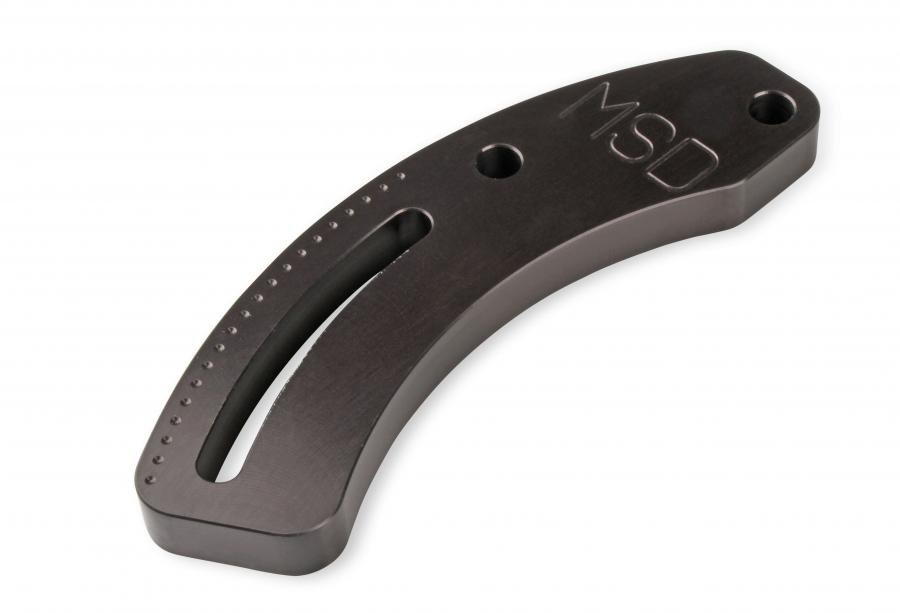

For a long time, racers have known that one of the best things to do to an engine to improve performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris, or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.
Features:
  • Absolutely the most accurate way to trigger the ignition.
  • The non-magnetic pickup cannot be false triggered.
  • Powerful magnets are embedded in a billet aluminum trigger wheel.

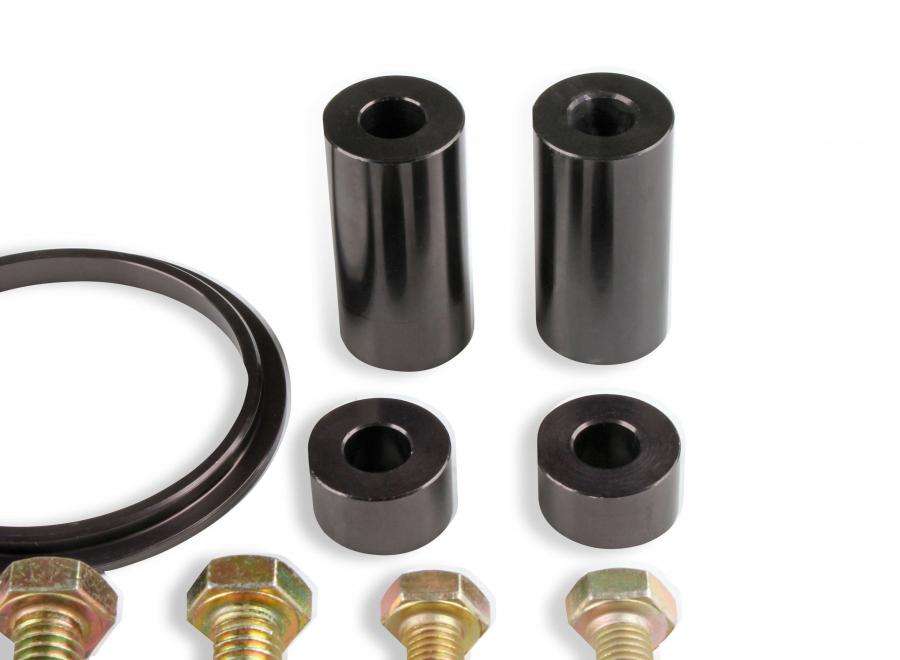

  • Kits feature special brackets and mounting hardware for a variety of engines.

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
8600_add.pdf688.39KB
23451_tb.pdf1.66MB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine Fitment Notes
Ford Mustang II Base 1975 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang II Base 1976 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang II Base 1977 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang II Base 1978 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang II Ghia 1975 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang II Ghia 1976 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang II Ghia 1977 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang II Ghia 1978 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1964 4.7L / 289 / V8
4.3L / 260 / V8		 Crank Trigger Kit; Black;
Ford Mustang Base 1965 4.7L / 289 / V8
4.3L / 260 / V8		 Crank Trigger Kit; Black;
Ford Mustang Base 1966 4.7L / 289 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1967 4.7L / 289 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1968 5.0L / 302 / V8
4.7L / 289 / V8		 Crank Trigger Kit; Black;
Ford Mustang Base 1969 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1970 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1971 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1972 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1973 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Base 1979 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang GT-350 20th Anniversary 1984 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang GT 1983 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang GT 1984 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang GT 1985 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Ghia 1979 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Grande 1970 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Grande 1971 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Grande 1972 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Grande 1973 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang LX 1984 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang L 1984 5.0L / 302 / V8 Crank Trigger Kit; Black;
Ford Mustang Shelby GT-350H 1966 4.7L / 289 / V8 Crank Trigger Kit; Black;
Ford Mustang Shelby GT-350 1965 4.7L / 289 / V8 Crank Trigger Kit; Black;
Ford Mustang Shelby GT-350 1966 4.7L / 289 / V8 Crank Trigger Kit; Black;
Ford Mustang Shelby GT-350 1967 4.7L / 289 / V8 Crank Trigger Kit; Black;
Ford Mustang Shelby GT-350 1968 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Capri Base 1966 4.7L / 289 / V8 Crank Trigger Kit; Black;
Mercury Capri Base 1967 4.7L / 289 / V8 Crank Trigger Kit; Black;
Mercury Capri Base 1979 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Capri Ghia 1979 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Capri RS 1982 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Capri RS 1983 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Capri RS 1984 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Capri RS 1985 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1967 4.7L / 289 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1968 4.7L / 289 / V8
5.0L / 302 / V8		 Crank Trigger Kit; Black;
Mercury Cougar Base 1969 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1977 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1978 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1979 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1983 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1984 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1985 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Base 1986 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Boss 302 1969 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar Brougham 1977 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar LS 1983 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar LS 1984 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar LS 1985 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar LS 1986 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar LS 1987 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar LS 1988 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1967 4.7L / 289 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1968 5.0L / 302 / V8
4.7L / 289 / V8		 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1969 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1977 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1978 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1979 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1980 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1981 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1987 5.0L / 302 / V8 Crank Trigger Kit; Black;
Mercury Cougar XR-7 1988 5.0L / 302 / V8 Crank Trigger Kit; Black;

Specifications:

Color Black
Diameter 6.562"
Emission Code 4
Make Ford
Part Type Ignition Crank Trigger Kit
Product Type Crank Trigger Kit
Proposition 65 www.P65Warnings.ca.gov
Sensor Dimensions 3/4" x 2.25"
Sensor Type Magnetic
Trigger Type 4X
Warranty Limited 1 Year Warranty
Wheel Width 3/8"
