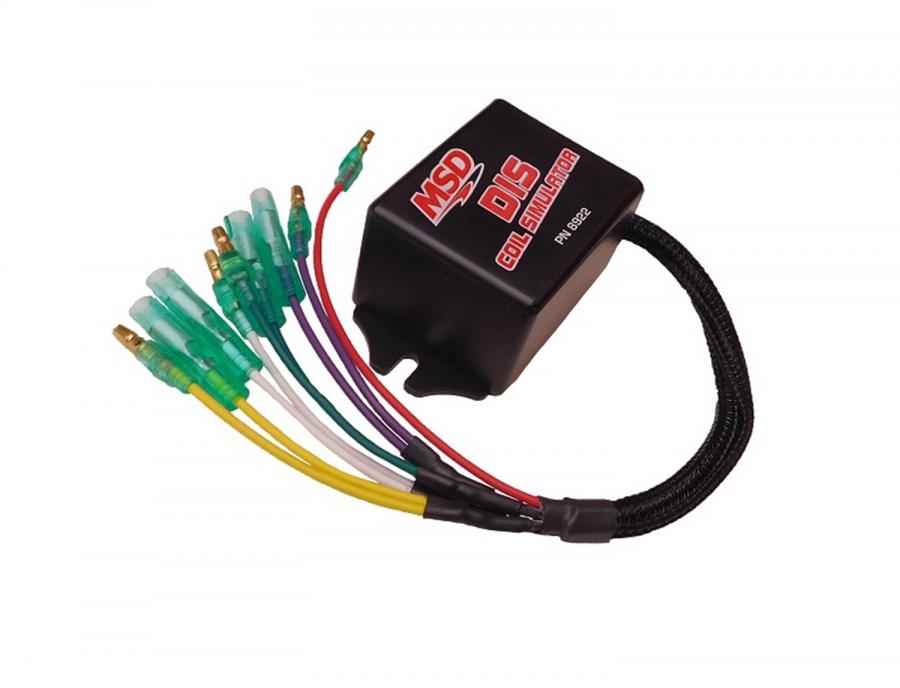

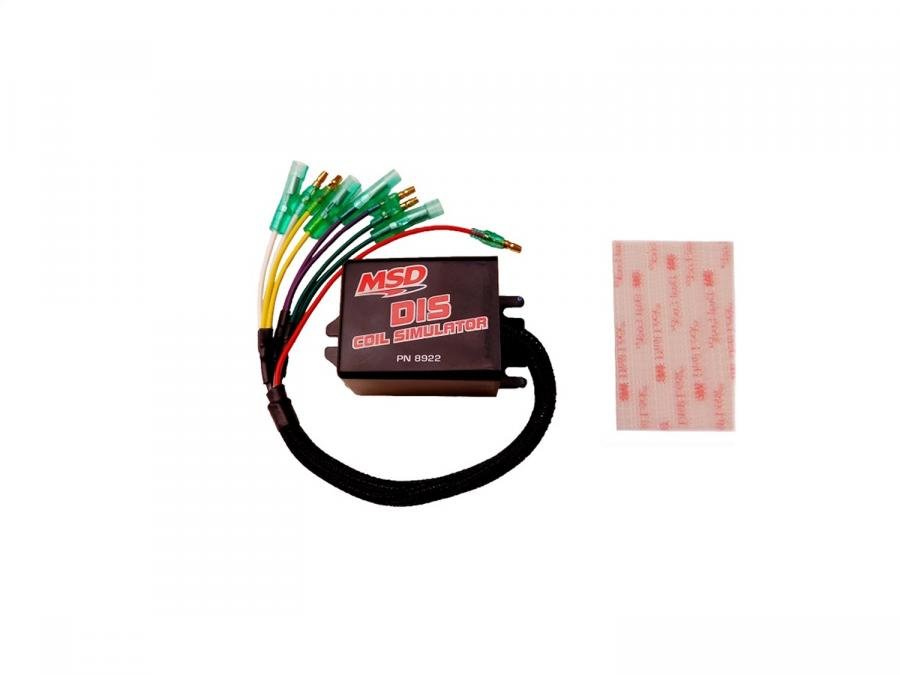

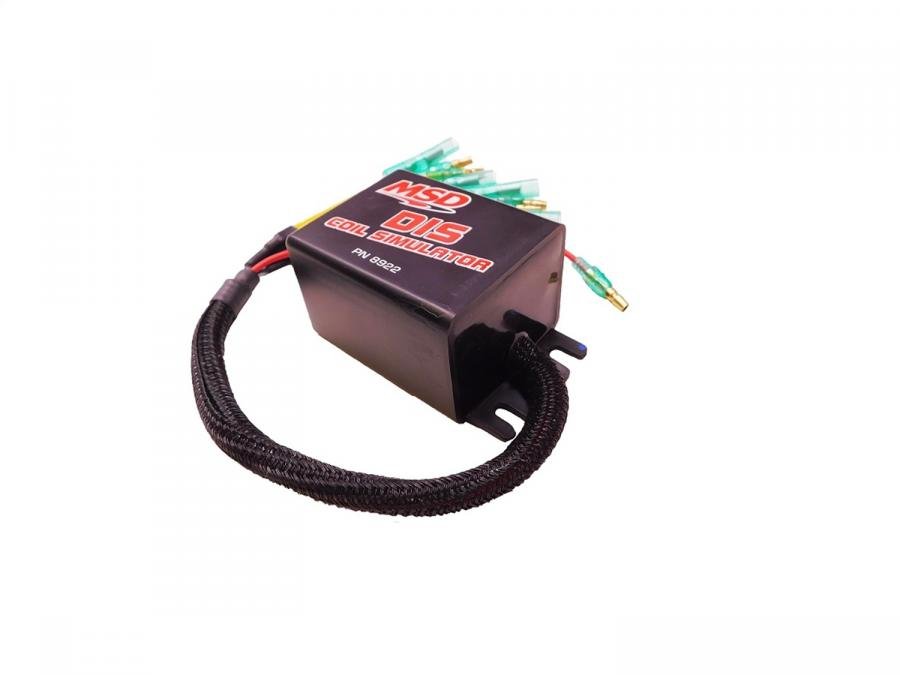

MSD DIS Coil Simulator 8922

MSD DIS Coil Simulator 8922
MSD DIS Coil Simulator 8922MSD DIS Coil Simulator 8922
$120.99 ea
NEWARRIVING SOONEstimated Ship Date 01/13/2025 (If Ordered Today)9 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/26/2024
Model: 4018157
STANDARD
DELIVERY
STORE PICKUP
[More Info]
In some instances when you install a DIS-4 Plus Ignition, the factory ECU may not be able to distinguish when the coil fires. This is the signal that is also responsible for firing the injectors (or the tachometer), which may cause a no-run situation. The Distributorless Coil Simulator simulates the original coil trigger signal thus allowing the ECU to properly trigger both the tach and fuel injection with the MSD DIS Ignition installed. In most cases, the Simulator plugs directly into the MSD's Harness.
Features:
  • Bullet style connectors for easy plug-in to MSD DIS-4 Plus harness
  • Simulates factory ECU kick-back signal for factory fuel injection and tach signal
  • Compact housing is easy to mount
  • Epoxy filled for protection against heat and vibration
Used on DIS-4 Plus Ignition and plugs into harness using the bullet connectors. **Will not work on Coil-on-Plug Ford applications**
Installation Notes:
Used on DIS-4 Plus Ignition and plugs into harness using the bullet connectors. **Will not work on Coil-on-Plug Ford applications**

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
frm35225-8922.pdf462.14KB

Specifications:

Emission Code 5
Part Type Tachometer Adapter
Product Type Tach Adapter
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 1 Year Warranty
