MSD Pro Mag Generator Band Clamp 81305

Name: MSD Pro Mag Generator Band Clamp 81305
Brand: MSD
SKU: 4017470
Price: 4232.99 CAD
Availability: InStock

$4,232.99 ea

NEWARRIVING SOONEstimated Ship Date 01/14/2025 (If Ordered Today)5 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/29/2024

Model: 4017470

0 reviewsWrite a Review Add to Wish List

CALL US
877.352.5355

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

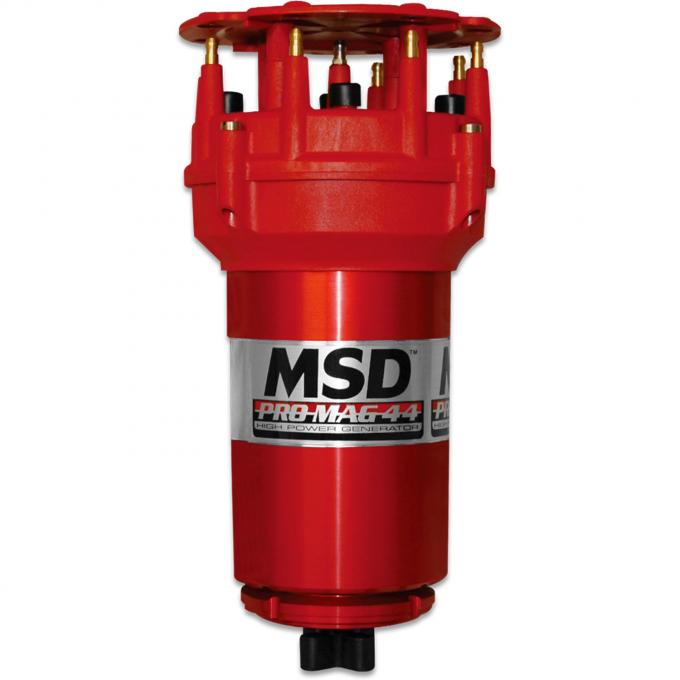

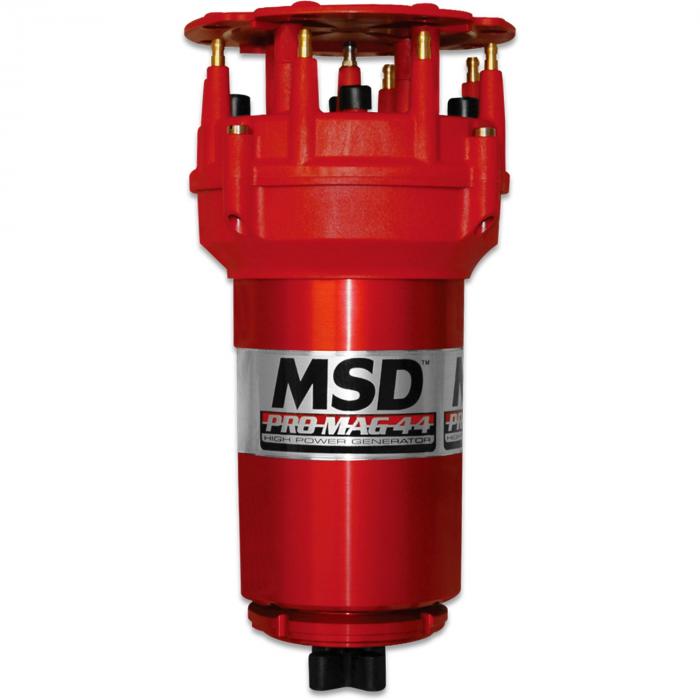

The Pro Mag 44 is the mother of all magnetos. With no magnets to recharge, no points to replace and by producing an amazing 44 A of primary current, it's no wonder that the Pro Mag 44 is the choice of top fuel dragster and funny car teams! The 44 utilizes a proprietary combination of rare earth magnets and windings to produce this incredible energy. To accurately trigger all of this energy, a magnetic pickup is mounted in the lower base of the generator and is triggered by one of eight precision paddles on a reluctor mounted to a 0.500 In. shaft. This pickup replaces weak and inaccurate points and never requires replacement or adjusting. When the pickup is triggered, the signal is sent to the electronic points box where the spark duration is controlled then directed to the 44's coil. The design also allows you to incorporate optional accessories such as a crank trigger, timing retard control or a rev limiter for improved consistency and safety.

Features:

Pro Mag Generator Band Clamp

Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name	File Size
81305.pdf	817.58KB
81305_tb.pdf	1.66MB

Videos:

Specifications:

Color	Red
Emission Code	4
Finish	As Cast
Part Type	Generator Bracket
Primary Current	44 Amp
RPM	12000
RPM Rating	through 12,000 rpm
Secondary Current	1.2 amps
Secondary Voltage	50,000 Volts
Spark Energy	800 mJ per spark
Style	Straight
WARNING CA Proposition 65	WARNING: Cancer and Reproductive Harm
