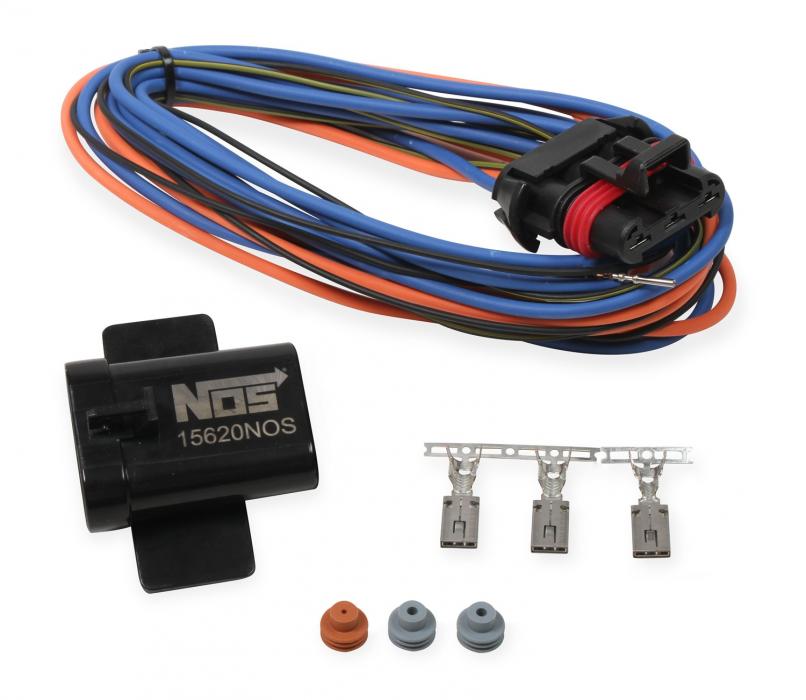

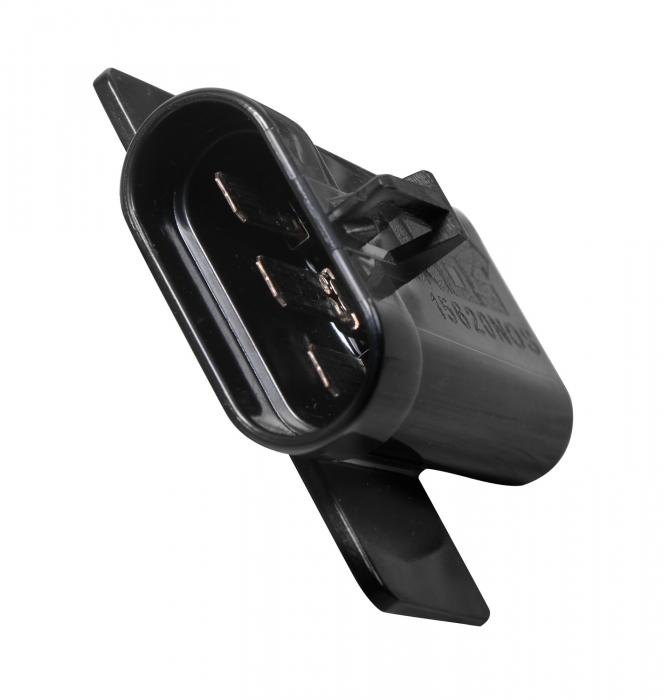

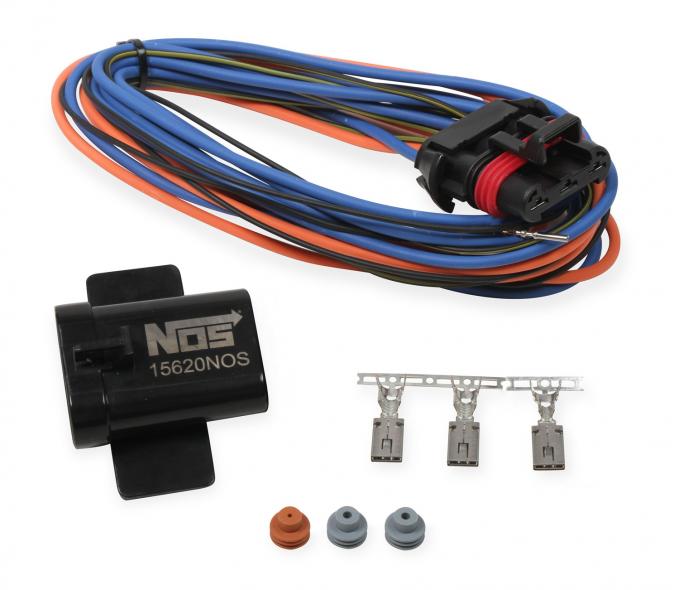

NOS Solid State Relay 15620NOS

NOS Solid State Relay 15620NOS
NOS Solid State Relay 15620NOS
$132.99 ea
NEWARRIVING SOONEstimated Ship Date 11/14/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/29/2024
Model: 4013225
STANDARD
DELIVERY
STORE PICKUP
[More Info]
NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz.
Features:
  • 5-20 volt DC Operation
  • Rugged Solid State Circuitry
  • Easy 3-Wire Connection
  • Included Terminated Pigtail
  • Included Extra Contacts for "Build-Your-Own“ Wiring
  • Ultra-fast activation <16 microseconds
  • Pulse Width Modulation (PWM) Compatible
  • PWM 0-100%
  • Up to 1000hz frequency
  • Vibration Resistant
  • Maximum Continuous Current = 40amps
  • Maximum Switching Current = 20amps
WARNING; CONNECTING BATTERY VOLTAGE TO THE BLUE WIRE WILL DAMAGE THE RELAY. VERIFY CONNECTIONS BEFORE APPLYING POWER 40amp maximum continuous load 20amp maximum Pulsed (PWM) load
Installation Notes:
WARNING; CONNECTING BATTERY VOLTAGE TO THE BLUE WIRE WILL DAMAGE THE RELAY. VERIFY CONNECTIONS BEFORE APPLYING POWER 40amp maximum continuous load 20amp maximum Pulsed (PWM) load

Downloads:

Download Name File Size
199r11304.pdf133.99KB

Specifications:

Emission Code 4
Max Amp Load 40
Pack Qty 1
Part Type Carburetor
Pig Tail Length 24"
Product Type Relay
Proposition 65 www.P65Warnings.ca.gov
