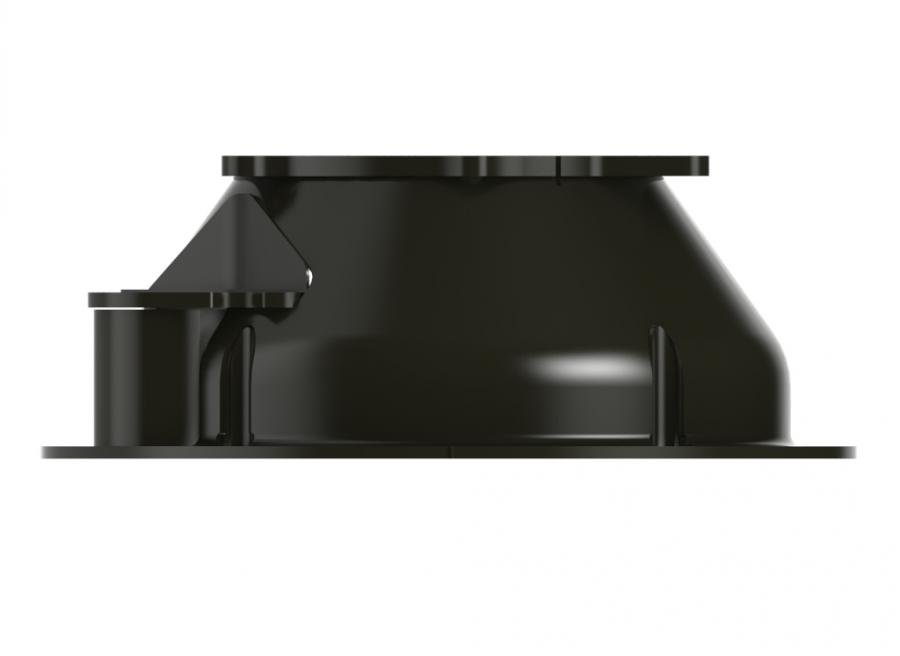

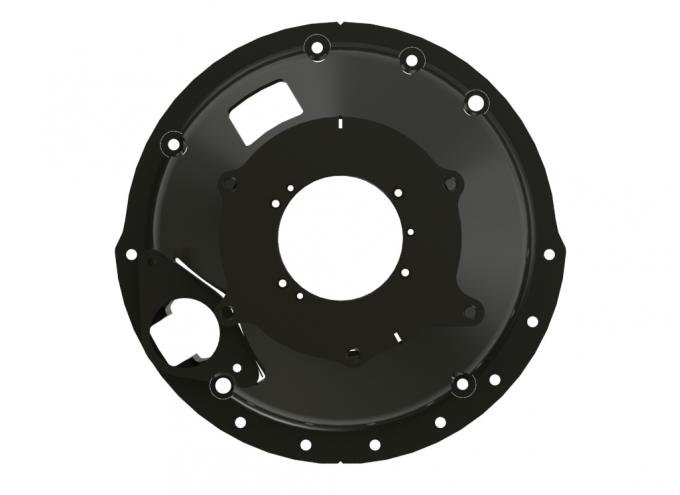

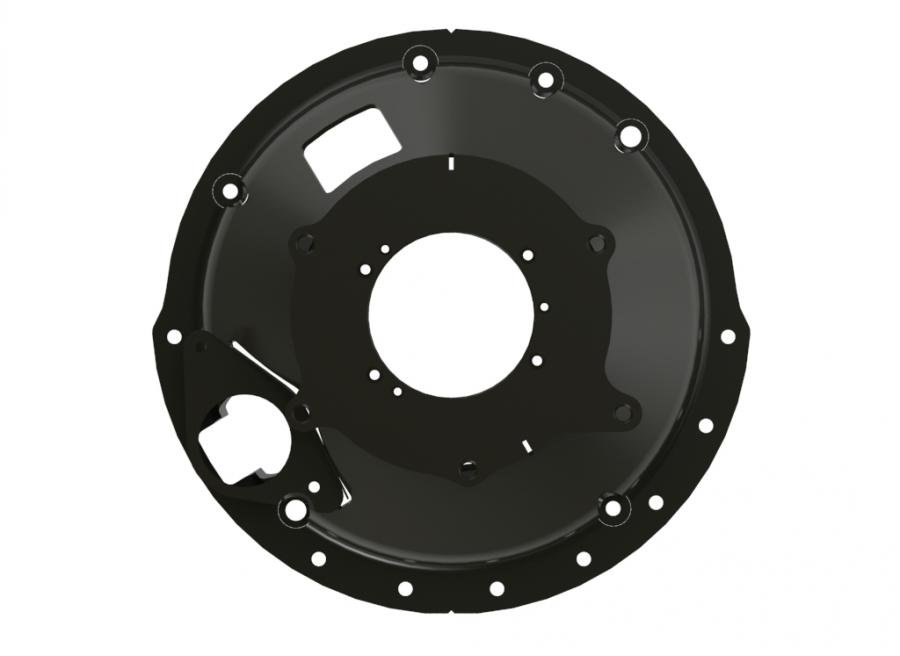

Quick Time Bellhousing, Mazda 13B or 20B Rotary Engine RM-4093MWA

Quick Time Bellhousing, Mazda 13B or 20B Rotary Engine RM-4093MWA
Quick Time Bellhousing, Mazda 13B or 20B Rotary Engine RM-4093MWAQuick Time Bellhousing, Mazda 13B or 20B Rotary Engine RM-4093MWA
$2,303.99 ea
NEWARRIVING SOONEstimated Ship Date 01/20/2025 (If Ordered Today)23 Available from HOLLEY PERFORMANCE PRODUCTS as of 01/02/2025
Model: 4014843
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
Full Engine Plate and Grade 8 Bolts Included Requires use of FC3S, 85-92 Mazda RX7 starter
Installation Notes:
Full Engine Plate and Grade 8 Bolts Included Requires use of FC3S, 85-92 Mazda RX7 starter

Videos:

Specifications:

Clutch Diameter 7.25 inch
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Rotary, 13B, 20B
Engine Make Mazda
Flywheel 125 Tooth
Height 6.3 inch
Height (in) 6.3
Make Mazda
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans. Bore Diameter 4.685 inch
Transmission Bert Racing, Muncie, TKX GM, TKO 500/600 GM, Falcon, Jerico, Richmond, Saginaw
Transmission Type Manual
Weight 36.0000
Weight (lb) 36
