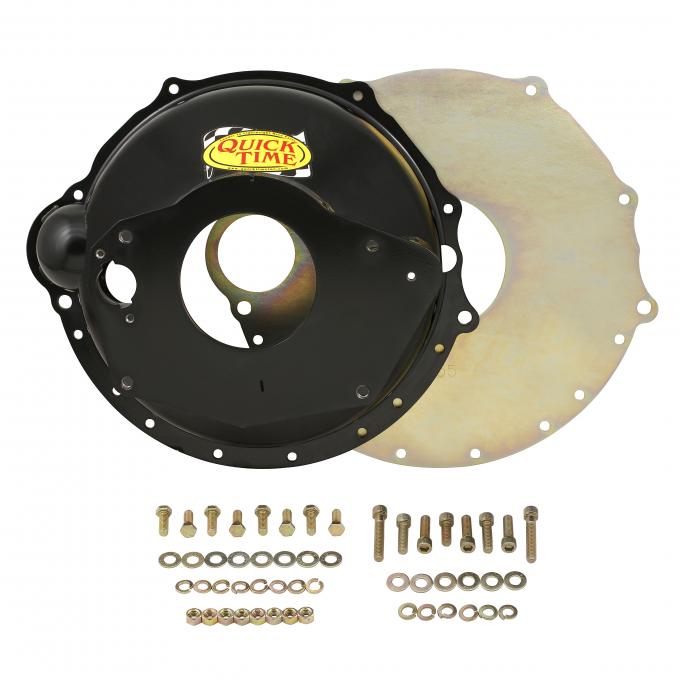

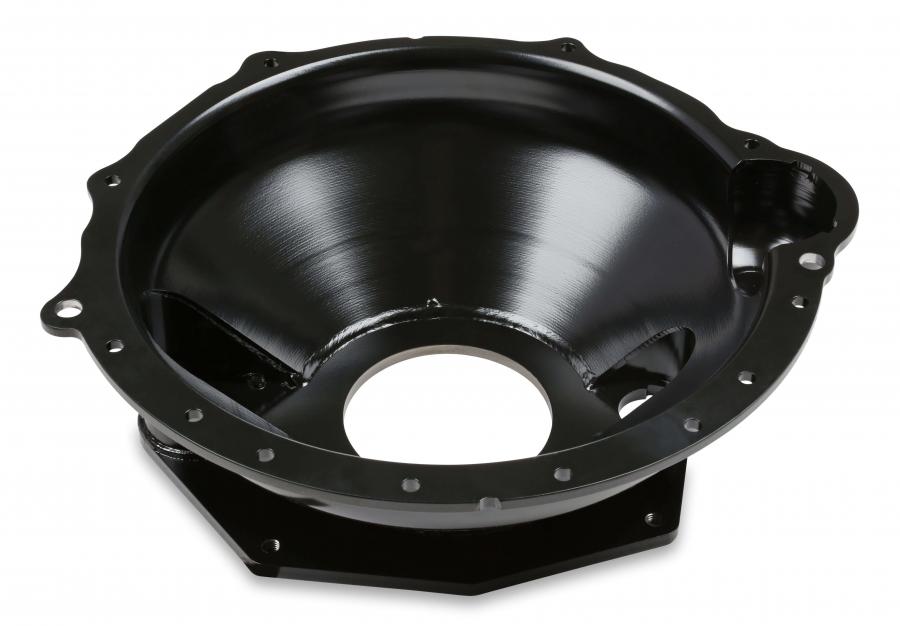

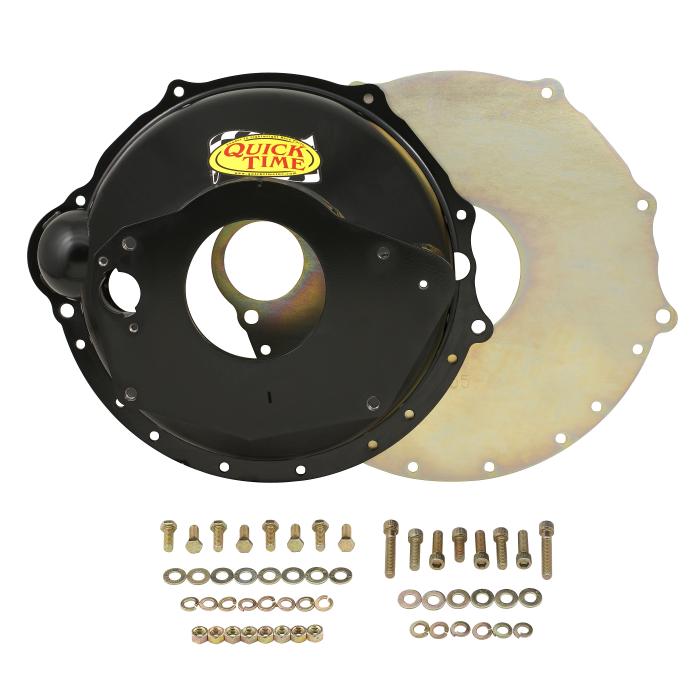

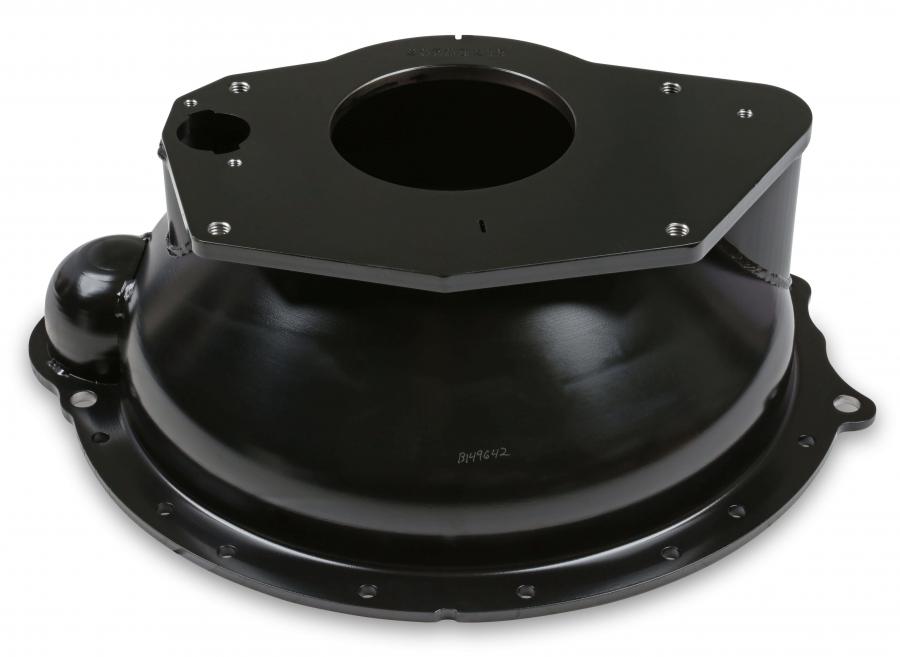

Quick Time Bellhousing, Cummins Diesel RM-2050

Name: Quick Time Bellhousing, Cummins Diesel RM-2050
Brand: Quick Time
SKU: 4014820
Price: 2065.99 CAD
Availability: InStock

$2,065.99 ea

NEWARRIVING SOONEstimated Ship Date 11/15/2024 (If Ordered Today)1 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/30/2024

Model: 4014820

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

Cummins Diesel bellhousing to NV4500 Transmission 12 valve or 24 valve

Features:

Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
100% built in the USA
Patent on 16 points of Bellhousing Design & Process

Downloads:

Download Name	File Size
lakewood_instructions_quicktime_bellhousings.pdf	461.94KB

Certification	6.1 SFI
Clutch	12.25" Clutch Disc
Clutch Diameter	12.25 inch Clutch Disc
Clutch Operation	Hydraulic
Color	Black
Emission Code	5
Engine	Cummins Diesel
Engine Make	Cummins
Finish	Semi-Gloss
Flywheel	152 Tooth
Height	6.688 inch
Height (in)	6.688
Make	Cummins
Material	Steel
Part Type	Transmission Bell Housing
Patented	yes
Product Type	Bellhousing
SFI Approved	Yes
SFI Certification	6.1
Trans Bore	5.594
Trans. Bore Diameter	5.594 inch
Transmission	NV4500
Transmission Type	Manual
Warranty	Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight	26#
Weight (lb)	26
