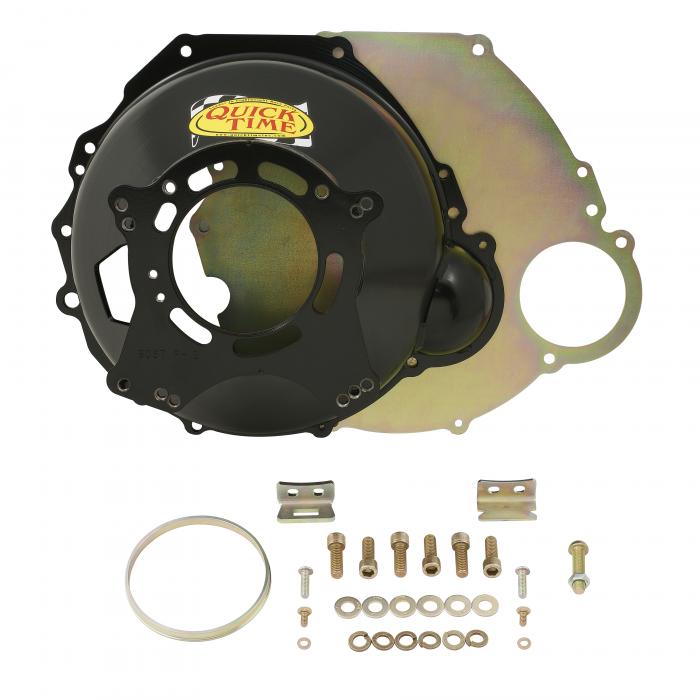

Quick Time Bellhousing, Small Block Ford 260 RM-6067

Quick Time Bellhousing, Small Block Ford 260 RM-6067
$1,828.99 ea
NEWOUT OF STOCK
Model: 4014911
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
* Requires a 6 bolt block clutch release arm
Installation Notes:
* Requires a 6 bolt block clutch release arm

Downloads:

Download Name File Size
lakewood_instructions_quicktime_bellhousings.pdf461.94KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Diameter 10.5 inch
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford 260 (Early 5 Bolt), Ford 289 (Early 5 Bolt)
Engine Make Ford
Engine Plate RM-6062-C
Flywheel 157 Tooth
Height 6.950 inch
Height (in) 6.95
Included Hardware Pivot Ball
Make Ford
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI 6.1
SFI Approved Yes
SFI Certification 6.1
Trans Bore 4.85 / 4.91 / 5.12
Trans. Bore Diameter 4.85 / 4.91 / 5.12 inch
Transmission TKO 500/600 Ford, TKX Ford, T5 Ford 1983-1993, TR3550
Transmission Type Manual
Weight 20#
Weight (lb) 20
