Quick Time Bellhousing, Ford Modular RM-6081

Quick Time Bellhousing, Ford Modular RM-6081
Quick Time Bellhousing, Ford Modular RM-6081Quick Time Bellhousing, Ford Modular RM-6081Quick Time Bellhousing, Ford Modular RM-6081Quick Time Bellhousing, Ford Modular RM-6081Quick Time Bellhousing, Ford Modular RM-6081Quick Time Bellhousing, Ford Modular RM-6081Quick Time Bellhousing, Ford Modular RM-6081
$1,536.99 ea
NEWARRIVING SOONEstimated Ship Date 11/15/2024 (If Ordered Today)38 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/30/2024
Model: 4014923
STANDARD
DELIVERY
STORE PICKUP
[More Info]

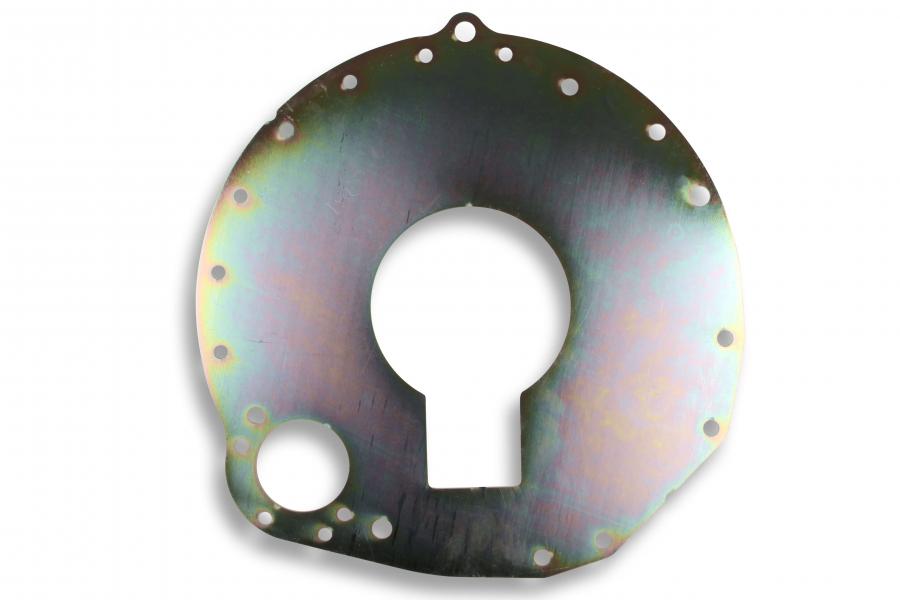

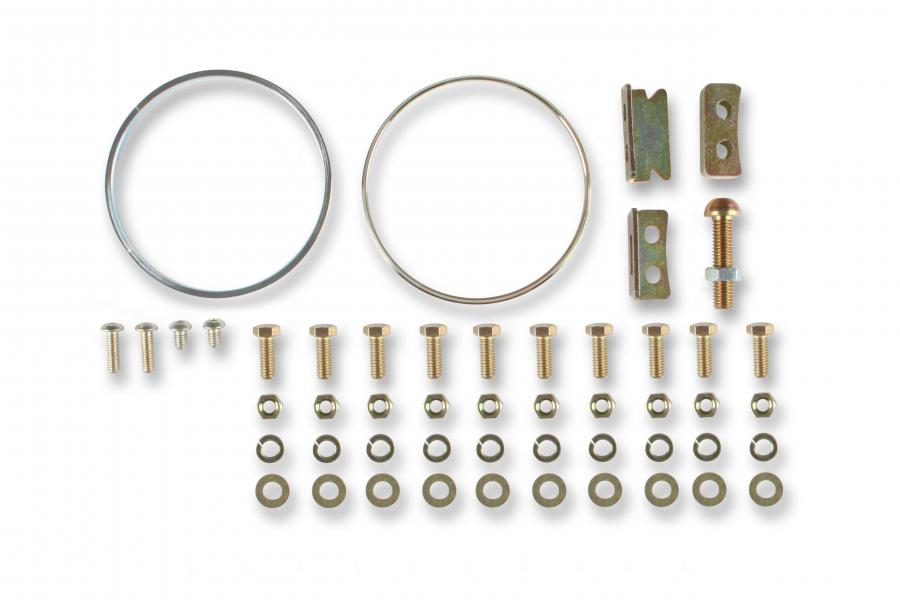

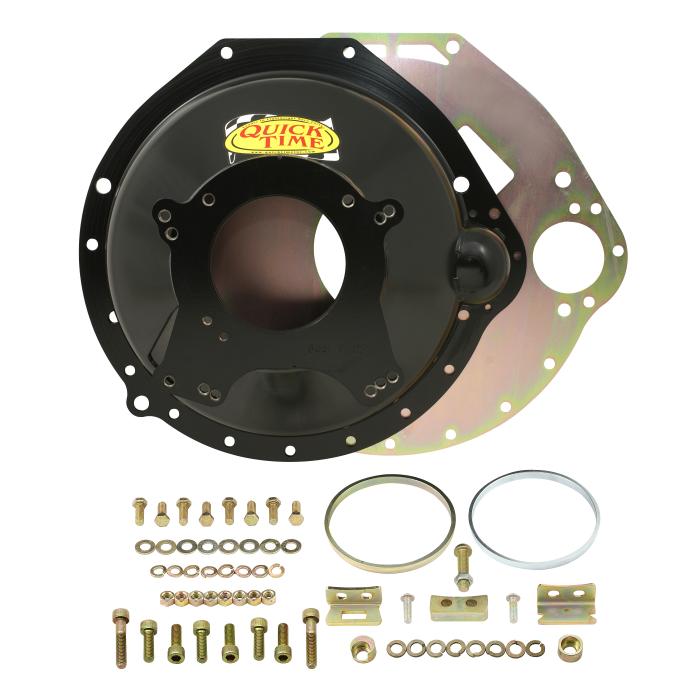

This S.F.I. 6.1 Bellhousing is designed for circle track, strip or street application. This bellhousing fits 4.6/5.0/5.4/5.8/6.2L Ford Modular Engines to Tremec transmission. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing the most dimensionally stable and accurate on the market today. This 6.925 in deep bellhousing will clear a 157 or 164 tooth flywheel and 11 in clutch assembly. Transmission bore is universal at 4.685 - 4.910 in. Kit complete with pivot ball, block plate and Grade 8 hardware.
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process

Downloads:

Download Name File Size
lakewood_instructions_quicktime_bellhousings.pdf461.94KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford Modular V8, Ford 4.6 Modular, Ford 5.4 Modular, Ford 5.8 Modular, Ford 6.2 Modular, Ford 7.3 Godzilla, Ford 5.0L Coyote
Engine Make Ford
Engine Plate RM-6081-C
Finish Semi-Gloss
Flywheel 157/164 Tooth
Height 6.925 inch
Height (in) 6.925
Make Ford
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore 4.85 / 4.91 / 5.12
Trans. Bore Diameter 4.85 / 4.91 / 5.12 inch
Transmission TKO 500/600 Ford, TKX Ford, T5 Ford 1983-1993, TR3550
Transmission Type Manual
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 22#
Weight (lb) 22
