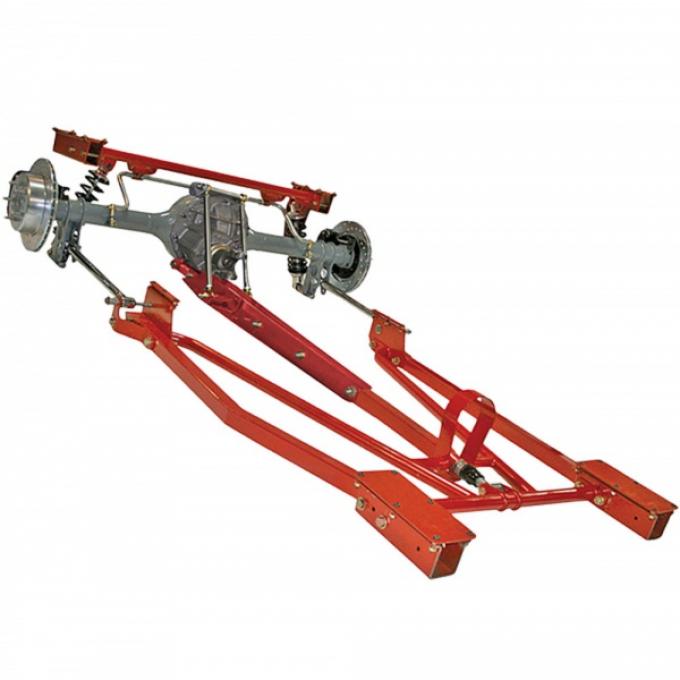

TCI Rear Torque Arm Suspension Kit With Coilovers, 1964-1970 Mustang

TCI Rear Torque Arm Suspension Kit With Coilovers, 1964-1970 Mustang
TCI Rear Torque Arm Suspension Kit With Coilovers, 1964-1970 MustangTCI Rear Torque Arm Suspension Kit With Coilovers, 1964-1970 MustangTCI Rear Torque Arm Suspension Kit With Coilovers, 1964-1970 MustangTCI Rear Torque Arm Suspension Kit With Coilovers, 1964-1970 Mustang
$9,422.99 ea
NEWARRIVING SOONEstimated Ship Date 12/03/2024 (If Ordered Today)
Model: 3194058
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
TRUCK
FREIGHT
STORE PICKUP
[More Info]

  • 1&frac34 " O/D Square Tube Torque Arm With Slider
  • Reinforcing Flanges
  • Rear Sway Bar Kit
  • RideTech Adjustable Coilovers
  • Powder Coated Springs
  • Urethane Bushings
  • 1&frac12 " O/D Round Tube Frame Stiffeners
  • Drive Shaft Loop For Extra Safety
  • 1&frac12 " O/D Round Tube Coilover Bolt-On Crossmember
  • Weld-On Axle-Housing Brackets
  • 1" Adjustable Panhard Bar With Rod Ends
  • Adjustable Pinion Support Tubes With Rod Ends
  • 1&frac14 " High Performance Adjustable Link Bars
  • 1&frac34 " O/D Round Tube Sub-Frame Connectors
  • Floor Reinforcing Plates & Hardware
  • Torque Arm Tabs With Installation Tool
  • Engineered To Work With Ford 9" Rear Ends Only
  • Mounting Hardware Included
  • Detailed Instruction Manual
  • Limited Lifetime Manufacturer Warranty
  • Proudly Made In The U.S.A.

Looking for a top-notch suspension upgrade for your Mustang? TCI's rear performance torque arm assembly is specifically engineered for street, autocross and road course applications. The rear torque arm suspension was designed to eliminate the suspension bind that occurs when cornering using the stock conventional leaf spring suspension. The torque arm features a telescoping slider at the front of the arm that rotates as the car goes through suspension travel and articulation. This allows the cars handling to be controlled by the coil-over shocks and the rear sway bar with no suspension binding variables.

This kit also allows for a lowered stance, greater rear axle control and dramatically improved handling. It is a bolt on application except for welding the axle brackets, panhard bracket and optional sway bar brackets onto the axle housing tubes. Detailed instructions are included to make the installation process a breeze. As a bonus, all TCI products are backed by their limited lifetime manufacturer warranty and are proudly made in the USA!

NOTE: "Show Package" displayed (powder coating and rear end housing are not included).

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Ford Mustang 1964 - 1970
